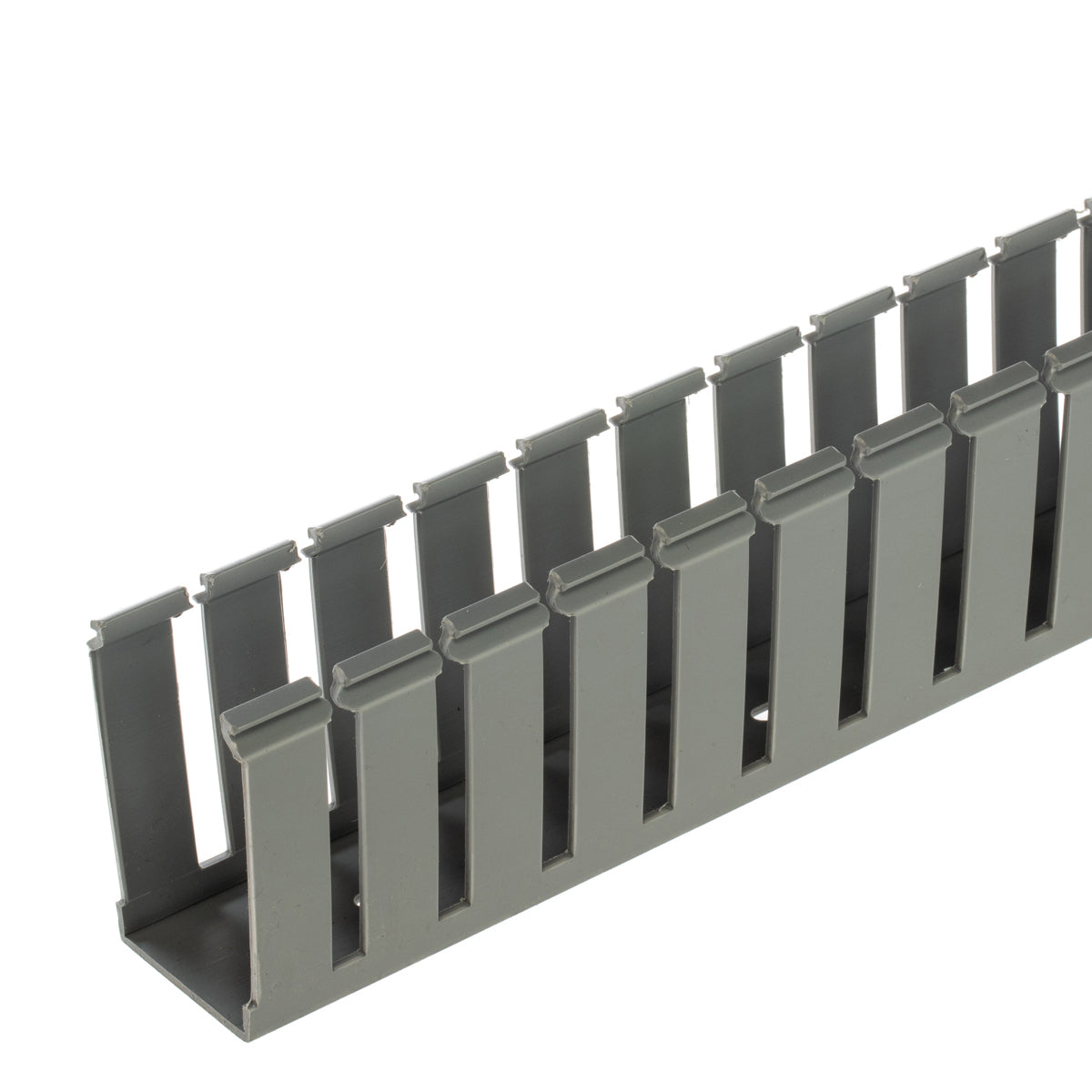

Panduit G2X3LG6-A Wide Slot Wiring Duct 2 inches X 3 inches

Product Description

The Panduit G2X3LG6-A wide slot wiring duct features a wide finger, slotted design for cable routing. Constructed from lead-free PVC with a UL94 flammability rating of V-0. It has a UL Recognized continuous use temperature of 122 F (50C) and conforms to NFPA 79-2002 section 14.3.1. Mounting holes are provided.

• Made of lead-free PVC
• UL Recognized continuous use temperature: 122 F (50C)
• UL94 Flammability Rating of V-0

Product Highlights

Wide slot wiring duct made of lead-free PVC with flammability rating of V-0 and mounting holes.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: G2X3LG6-A
• Country of Origin: United States

Technical Specifications

• Components: SLOTTED DUCT STANDARD
• Fiber Duct H x W: 2" X 3"
• Finish: GREY
• Material: PVC
• Type: CABLE ROUTING / WIRING DUCT
• UNSPSC Code: 39131712
• Sub Brand: Panduct
• Country of Origin: United States
• Made in USA: Yes
• Application: Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications
• Connection: Mounting Holes with Adhesive
• Slot Pitch: 0.31 IN
• Slot Style: Slotted
• Standard: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
• Item Type: Base Wiring Duct
• Product Line: Panduct
• Product Model: Type G
• Product Type: Cable Routing
• Mounting Type: Standard Mounting Hole
• Slot Size: 7.9 mm
• Depth: 3 Inch
• Buy American Compliant: Y
• CA Prop65 Warning: No
• Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
• Prop 65: No
