Panduit G2X1.5LG6 Wide Slot Wiring Duct 2 inches X 1.5 inches

Product Description

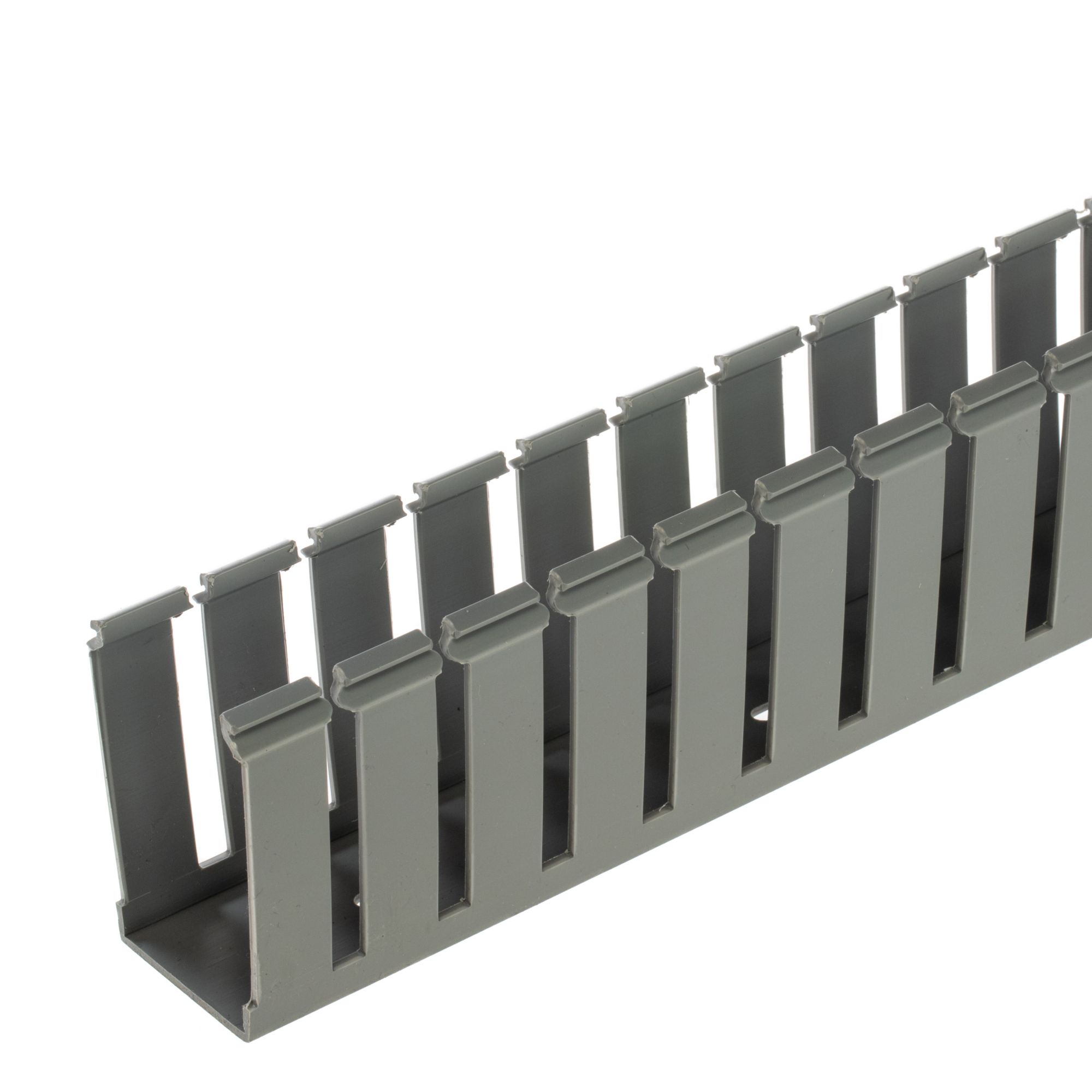

The PANDUIT G2X1.5LG6 wide slot wiring duct features a wide slot/finger design, providing greater sidewall rigidity. Constructed from lead-free PVC, it accommodates a wide range of wire bundle sizes. It has a UL 94 flammability rating of V-0 and is UL-recognized for continuous use at 122°F (50°C). Mounting holes are provided for easy installation.

• Wide slot/finger design provides greater sidewall rigidity
• Manufactured with lead-free PVC materials
• UL-recognized for continuous use at 122°F (50°C) temperature

Product Highlights

The PANDUIT G2X1.5LG6 wiring duct is ideal for managing and organizing wires in various applications, ensuring a tidy and secure cable arrangement.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: G2X1.5LG6
• Country of Origin: United States of America

Technical Specifications

• Components: SLOTTED DUCT STANDARD
• Fiber Duct H x W: 2" X 1.5"
• Finish: GREY
• Material: PVC
• Type: CABLE ROUTING / WIRING DUCT
• UNSPSC Code: 39131712
• Height: 1.62"
• Quantity: 6 Foot
• Width: 2.25"
• Mount Type: Mounting Holes
• Overall Width: 2.25 in, 57.2 mm
• Overall Height: 1.62 in, 41.1 mm
• Overall Length: 1.8 m, 6 ft
• Slot Width: .31 in, 7.9 mm
• Nominal Height: 1.5 in.
• Country of Origin: United States of America - Subject to change
• Nominal Width: 2 in.
• Cover Part Number: Type C, C2LG6
• Wall Opening Size: 0.31 in. (7.9mm) Slot
• Wall Opening Spacing: 0.80 in. (20.3mm) O.C.
• Wall Type: Wide Slot
• Nominal Length: 6 ft.
• Cover Style: Flush (not included)
• Mounting: Mounting Holes
• Temperature Rating - max: 122°F (50°C)
• Flammability Rating: UL 94 V-0
• Listings: UL
