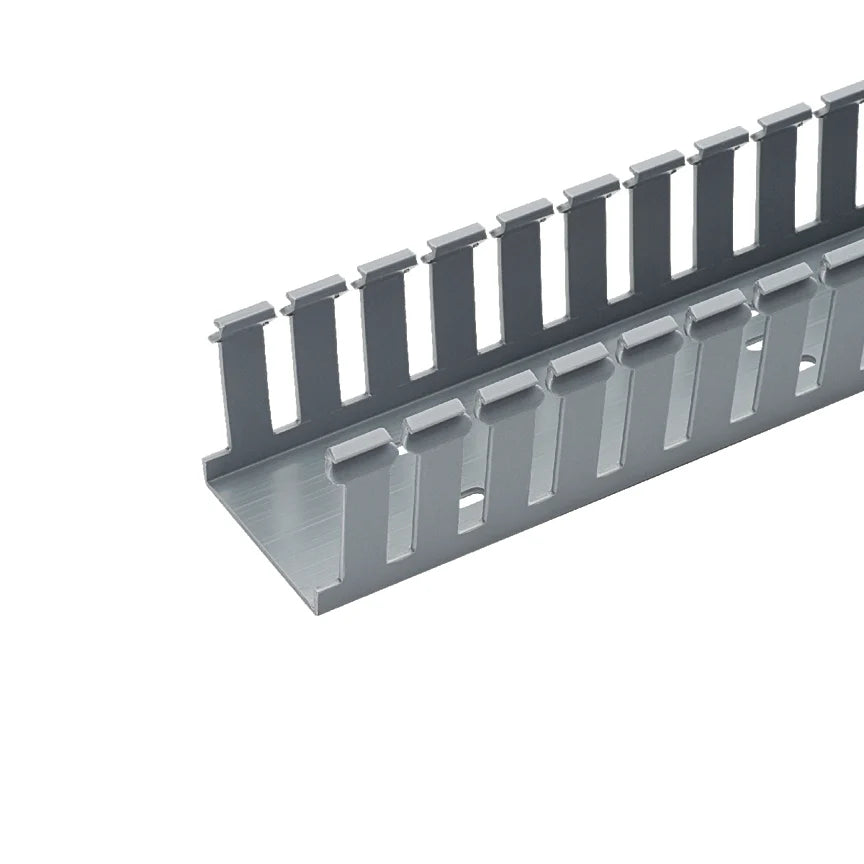

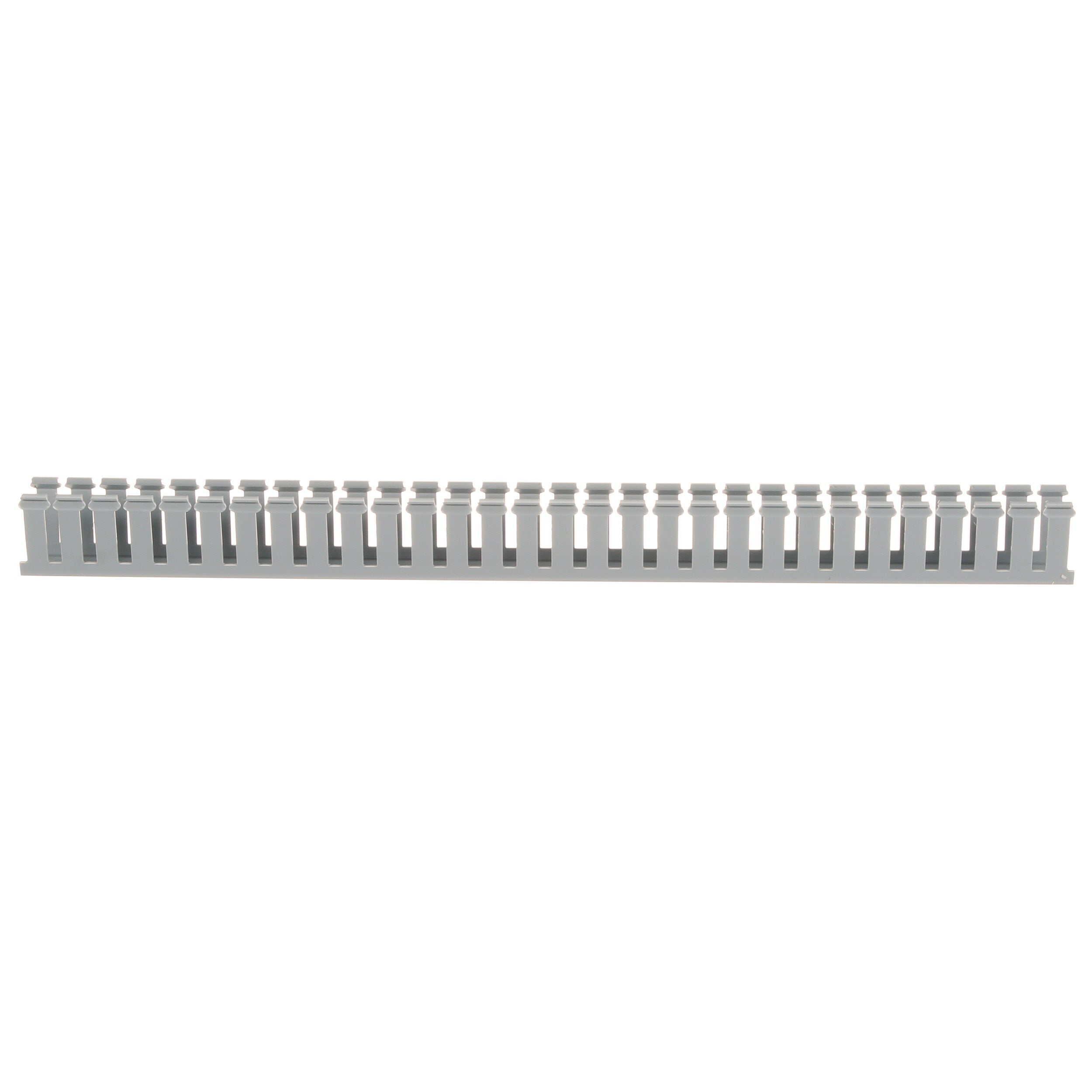

Panduit G1X2LG6 Wide Slot Wiring Duct No Cover

Product Description

The Panduit G1X2LG6 Wide Slot Wiring Duct is designed with a unique wide slot/finger configuration that enhances rigidity while accommodating various wire sizes. This product is made from lead-free PVC, featuring a UL Recognized continuous-use temperature of up to one hundred twenty-two degrees Fahrenheit (fifty degrees Celsius) and a UL 94 flame class rating of V-0. The duct is ideal for organizing electrical wires and improving overall installation efficiency. The length of the duct is six feet and the dimensions are two point twelve inches in depth and one point twenty-five inches in width. This wiring duct does not include a cover, which is available separately.

• Lead-free PVC construction
• UL approved for continuous use at up to 122°F (50°C)
• Includes mounting holes for easy installation

Product Highlights

The wide slot design provides better support for diverse wire bundles. This duct can be utilized in various electrical applications, offering a reliable solution for wire management.

Product Information

Standard Information

• Manufacturer: Panduit
• Material: Lead-free PVC

Technical Specifications

• Dimensions: Two point twelve inches depth x one point twenty-five inches width
• Length: Six feet
• Flammability Rating: UL 94 V-0
• Temperature Rating: Up to one hundred twenty-two degrees Fahrenheit (fifty degrees Celsius)
• Mounting Holes: Yes
• Slot Size: Zero point thirty-one inches
• Color: Light Gray
