Product Description

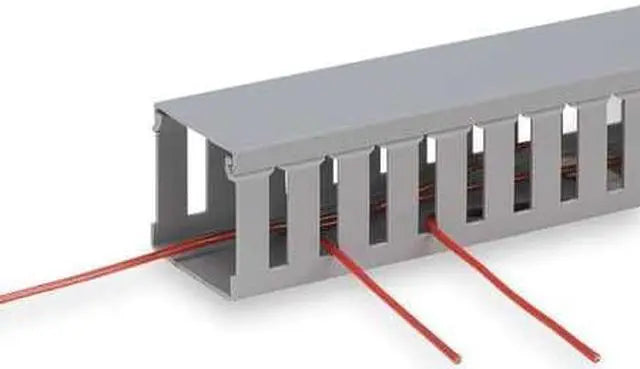

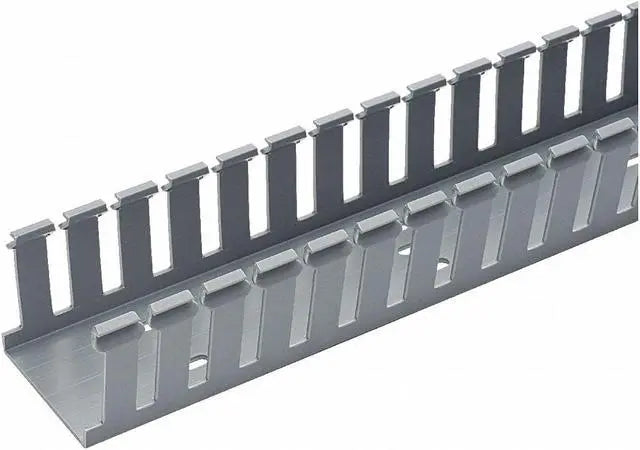

The PANDUIT G1X2LG6-A Panduct Lead-Free PVC Wide Slot Wiring Duct features a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122
°F (50°C). Adhesive and mounting holes provided.
- Wide slot/finger design provides greater sidewall rigidity
- Suitable with a range of wire bundle sizes
- UL 94 flame class of V-0
Product Highlights
This wiring duct is ideal for organizing and protecting wires in various applications, ensuring a tidy and secure routing in any setting.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: G1X2LG6-A
-
Country of Origin: US - United States
Technical Specifications
-
ECCN: EAR99
-
Country of Origin: US - United States
-
UPC: 07498354677
-
UNSPSC: 39131712
-
Brand: Panduct
®
-
Standard: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
-
Application: Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications
-
Connection Type: Standard Mounting Holes with Adhesive
-
Material: PVC
-
Mounting Type: Adhesive-Backed
-
Type: Wide Slot Wiring Duct
-
Color: Light Gray
-
Flammability Rating: UL94V-0
-
Color Family: Gray
-
Height: 2.12 in.
-
Width: 1.25 in.
-
Series: PANDUCT
® Type G
-
Packaging: Box
-
Part Status: Active
-
Wire Duct Type: Slotted (Raceway), Base
-
Length: 6.00' (1.83m)
-
External Height - Metric: 53.8mm
-
External Width - Metric: 32mm
-
Length - Metric: 1.83m
-
External Height - Imperial: 2.12"
-
External Width - Imperial: 1.26"
-
Raceway / Duct Material: PVC (Polyvinylchloride)
-
Length - Imperial: 6ft
-
Raceway / Duct Color: Gray
-
Product Range: Panduct Series
-
Model: G1X2LG6-A
-
Weight: 1.22
-
Slot Width: .31 in, 7.9 mm
-
Product Type: Wide Slot Wiring Duct
