Panduit G1.5X4LG6 Plastic Wiring Duct

Product Description

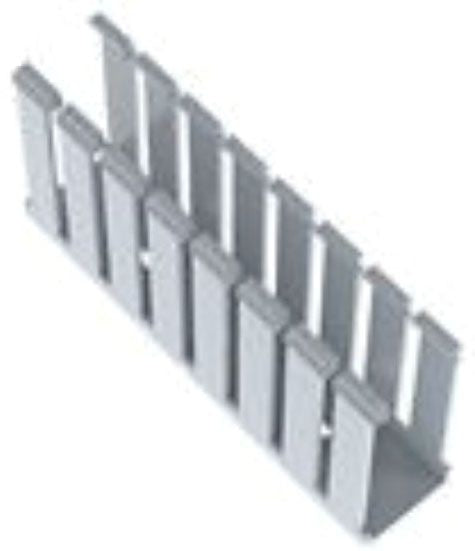

The PANDUIT G1.5X4LG6 is a plastic wiring duct designed to organize and protect electrical conductors in control panels, enclosures, and industrial wiring installations. This slotted duct channels low-voltage and signal wiring along a defined path, keeping wire bundles separated, accessible, and protected from abrasion. Electricians and panel builders use this duct to maintain clean, code-compliant wiring layouts. Based on the part number designation, this duct measures approximately 1.5 inches wide by 4 inches tall and is sold per foot, making it straightforward to cut and fit to specific panel dimensions.

This wiring duct is suited for use in electrical control panels, machine tool enclosures, terminal strip assemblies, and industrial automation cabinets. It is installed horizontally or vertically along the panel backplane to route conductors between terminals, breakers, and DIN rail-mounted components. The slotted sidewall design allows wire leads to exit the duct at any point along the run without requiring pre-drilled holes or additional fittings.

Key Features

• Plastic construction for lightweight, non-conductive wire management
• Slotted sidewalls allow conductor egress at any point along the run
• Sold per foot for flexible cut-to-length installation
• 1.5-inch width by 4-inch height channel accommodates medium to large wire bundles
• Compatible with standard panel backplanes and DIN rail assemblies

Compatibility

Designed as an OEM-style wiring duct for use in electrical control panels and enclosures requiring organized conductor routing.

Installation Notes

Installation is typically performed by licensed electricians or qualified panel builders. De-energize the panel and follow applicable NFPA 70 (NEC) lockout/tagout procedures before routing conductors or securing duct. Duct sections can be cut to length with a fine-tooth saw and are typically fastened to the panel backplane with screws or adhesive mounting. Avoid over-filling the duct channel, as exceeding rated fill capacity can restrict airflow and make future wiring changes difficult.

Technical Specifications

• Material: Plastic
• Width: 1.5 inches
• Height: 4 inches
• Sold As: Per foot
• UPC: 07498354581

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: G1.5X4LG6
