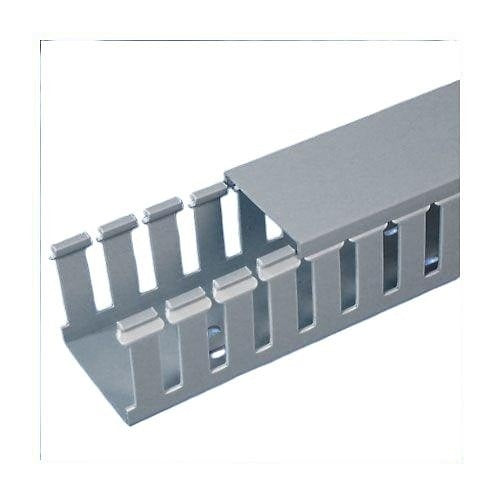

Panduit G1.5X4LG6-A Slotted Wiring Duct Pvc

Product Description

The PANDUIT G1.5X4LG6-A is a slotted wiring duct manufactured from PVC, designed to organize and route electrical conductors inside control panels, enclosures, and electrical cabinets. Measuring 1.5 inches wide by 4 inches tall by 6 inches in length, it provides a structured pathway that keeps wiring separated, accessible, and protected. The slotted sidewalls allow conductors to exit the duct cleanly at any point along the run, simplifying routing changes and future modifications. This duct is a standard component in panel wiring work performed by licensed electricians and control panel builders.

Slotted wiring duct is used in residential, commercial, and industrial electrical panel assemblies. It is commonly installed inside motor control centers, distribution panels, PLC enclosures, and terminal block assemblies where organized conductor management is required. The 1.5 x 4 inch cross-section suits moderate-density wiring runs where a low-profile width is needed alongside a tall channel for higher conductor fill capacity.

Key Features

• PVC construction provides resistance to moisture and common chemicals found in panel environments
• Slotted sidewalls allow conductors to exit at any point along the duct length
• 1.5 inch width keeps panel layout compact while the 4 inch height accommodates higher conductor counts
• 6 inch section length suits modular panel builds and custom cut-to-fit applications
• Sold individually as a single unit per package

Compatibility

Designed as an OEM-style slotted wiring duct for use in standard electrical panel and enclosure wiring assemblies requiring a 1.5 x 4 inch duct cross-section.

Installation Notes

Slotted wiring duct is typically installed by licensed electricians or control panel technicians. De-energize all circuits within the enclosure before routing or modifying conductors. Duct sections are commonly secured with screws or adhesive-backed mounting feet to DIN rail panels or enclosure back plates. Follow applicable NEC guidelines for conductor fill and bundling inside raceways.
