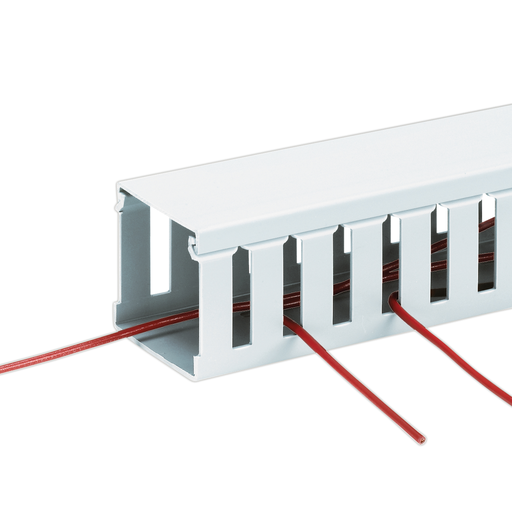

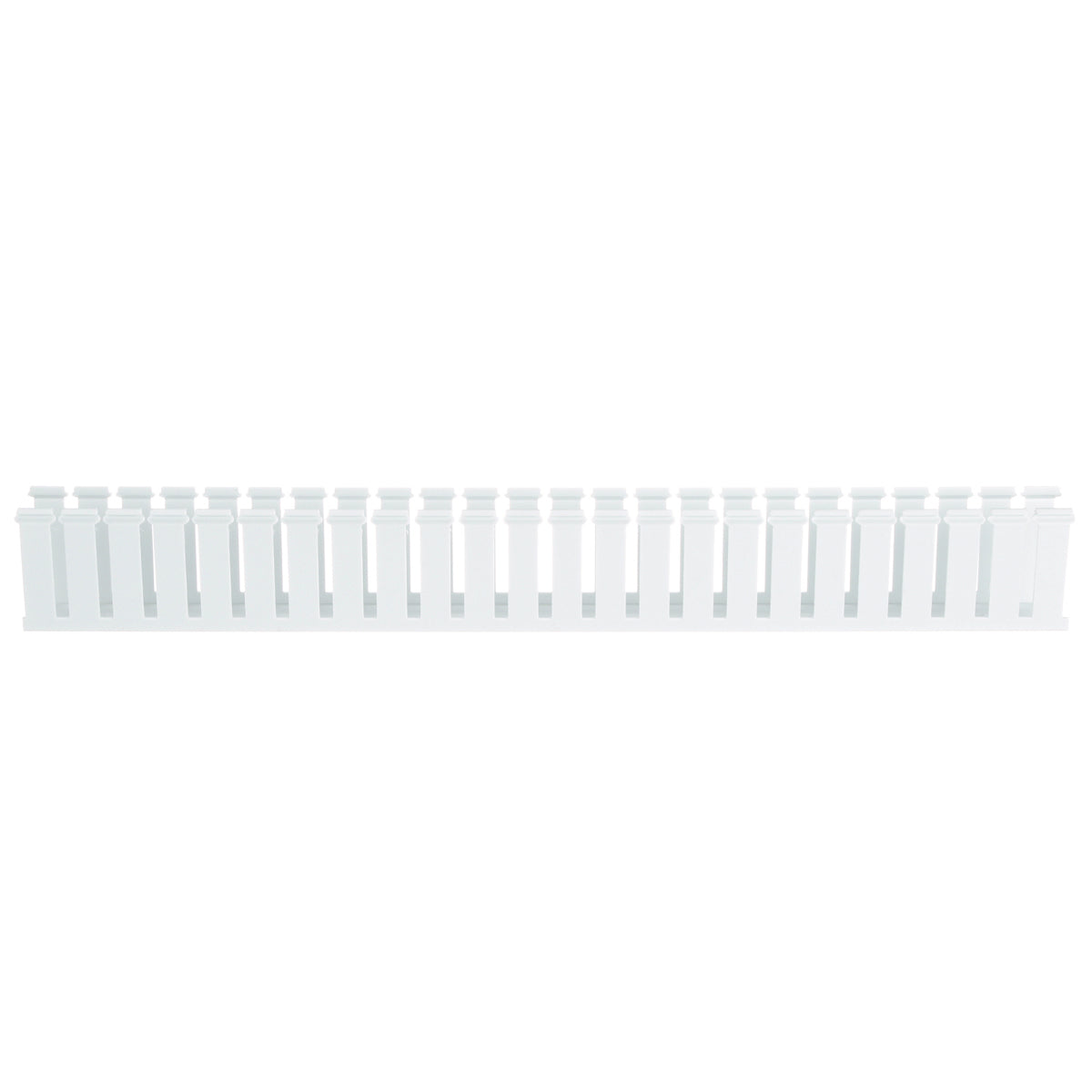

Panduit G1.5X3WH6 Base Wiring Duct

Product Description

The Panduit G1.5X3WH6 Base Wiring Duct is designed for organized and safe wire management. Made of lead-free PVC, this wiring duct features a wide slot design that enhances sidewall strength. It accommodates various wire bundle sizes effectively. The product is recognized for its UL 94 flame rating of V-0 and can operate at continuous temperatures up to one hundred twenty-two degrees Fahrenheit (fifty degrees Celsius). It measures one and a half inches by three inches and is six feet in length. Covers for the duct are sold separately.

• Wide slot/finger design for improved rigidity
• UL recognized temperature tolerance up to one hundred twenty-two degrees Fahrenheit
• Mounting holes included for easy installation

Product Highlights

This wiring duct is suitable for various applications, offering reliable protection and organization for wiring systems.

Product Information

Standard Information

• Catalog Number: G1.5X3WH6
• Manufacturer: Panduit

Technical Specifications

• Material: PVC
• Slot Pitch: 0.31 inches
• Color: White
• Width: 1.75 inches
• Depth: 3.12 inches
• Length: 6 feet
• Standards: RoHS Compliant, UL Recognized
• Country of Origin: United States
