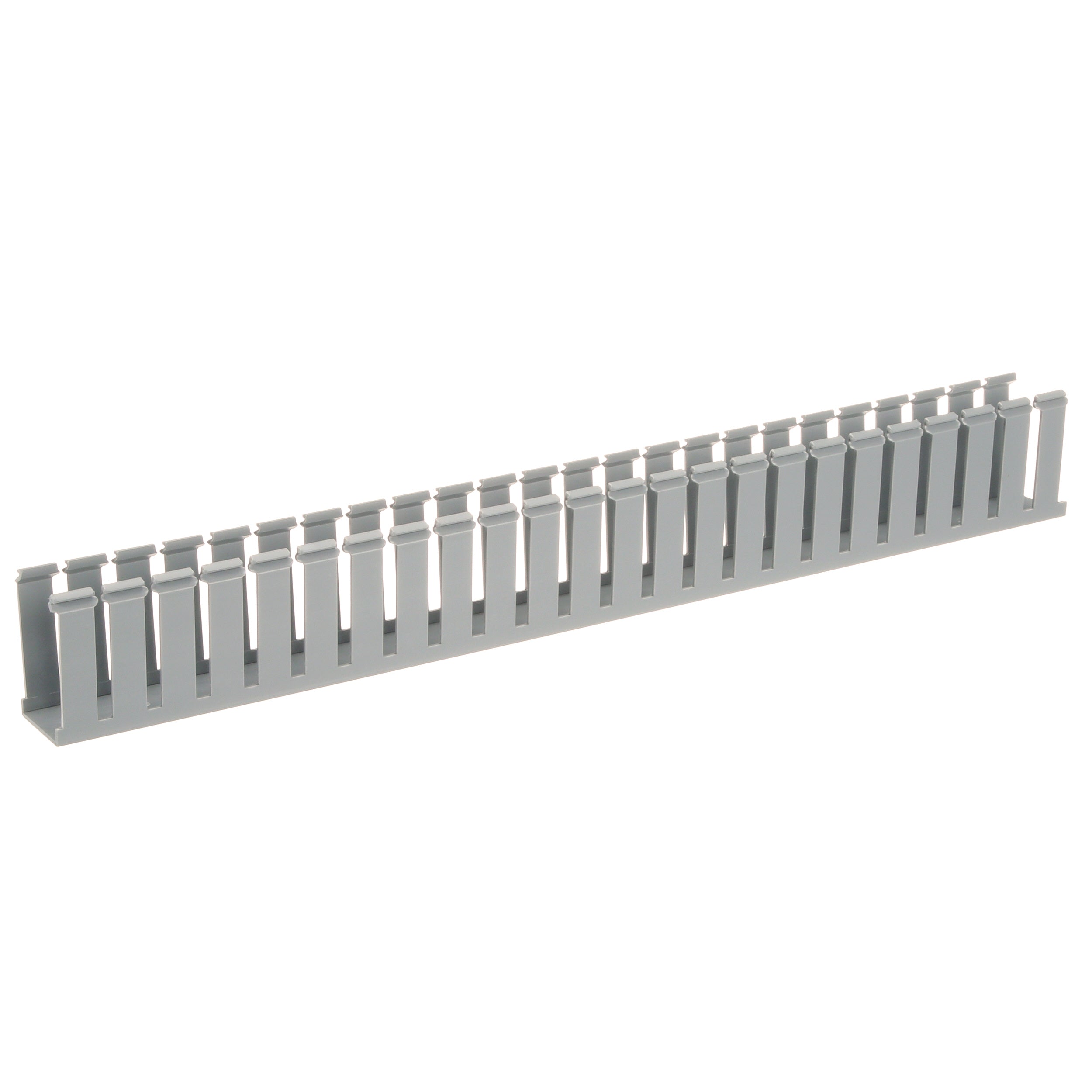

Panduit G1.5X3LG6 Slotted Wiring Duct 6 ft Length

Product Description

The PANDUIT G1.5X3LG6 slotted wiring duct is designed for greater sidewall rigidity and can be used in a wide range of indoor applications. Constructed from PVC, this wiring duct features a wide finger and slot design suitable for various wire and bundle sizes. Scorelines allow easy finger and sidewall section removals.

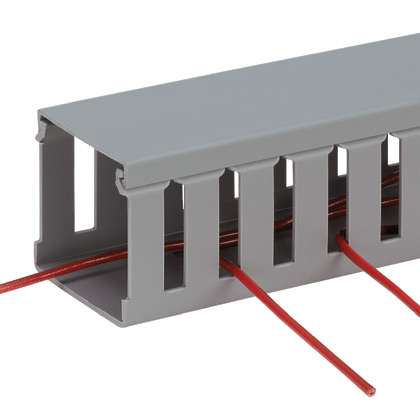

• Wide finger and slot design provides greater rigidity
• Upper and lower scorelines allows easy finger and sidewall section removals
• Protects the surface during storage, handling and installation

Product Highlights

The PANDUIT G1.5X3LG6 wiring duct is made from PVC and features a wide slot design for indoor applications.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: G1.5X3LG6
• Country of Origin: US

Technical Specifications

• Color: Light Gray
• Depth: 3 in
• Width: 1-1/2 in
• Length: 6 ft
• Material: PVC
• Slot Size: 0.31 in
• Slot Type: Wide Slot
• Thickness: 0.09 in
• Mounting Type: Hole
• Adhesive Backed: No
• Country of Origin: US
• Application: For greater sidewall rigidity and can be used in a wide range of indoor applications
• Standard: RoHS Compliant; UL Recognized; CE Compliant; CSA Approved
• Flammability Rating: UL94V-0
• Height: 3.12 in
• TC Connection: Standard Mounting Holes
• Type: Type G
• Overall Width: 1.75 in
• Overall Height: 3.12 in
• Slot Width: .31 in
