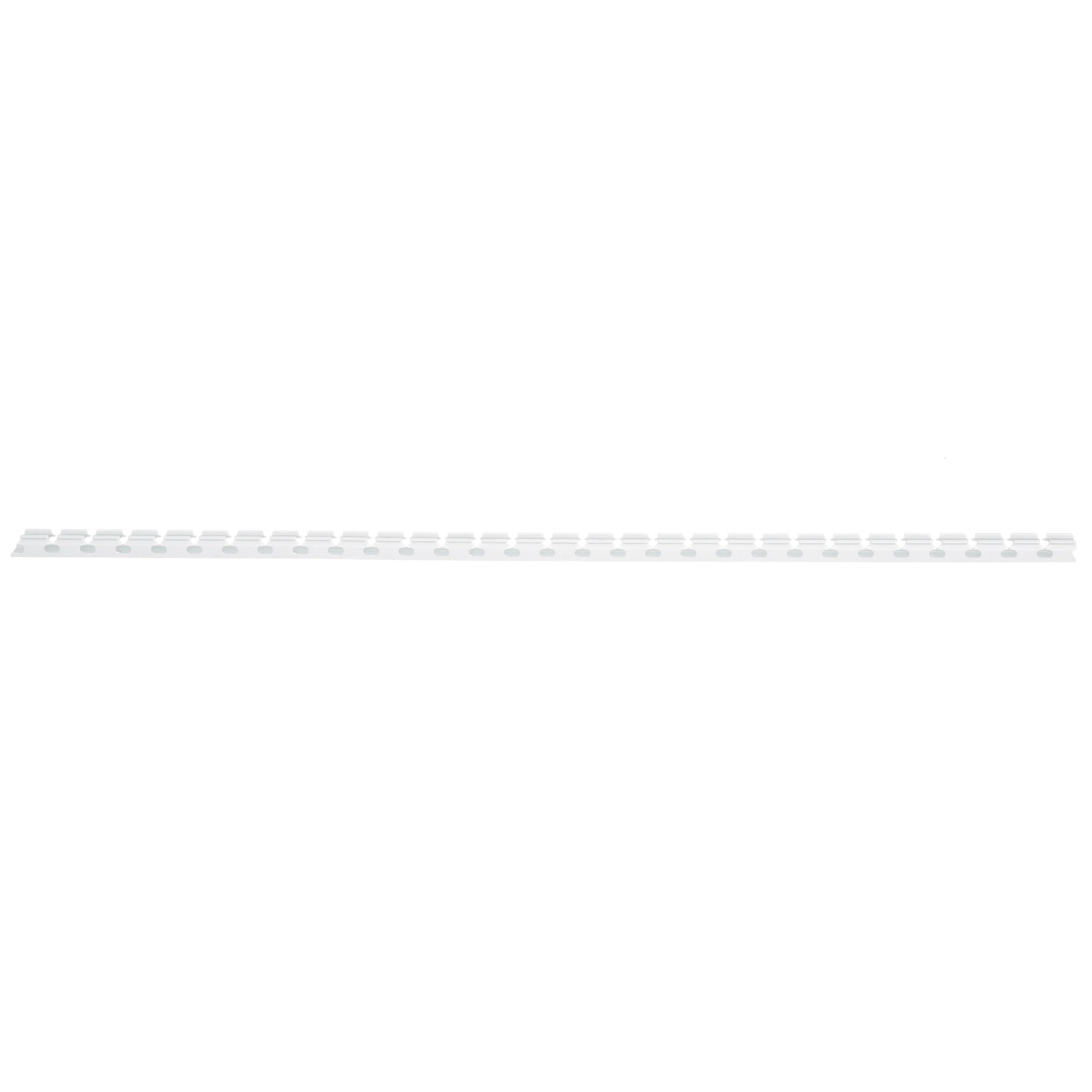

Panduit G.75X1WH6 Pan G-Duct Slotted 6 ft

Product Description

The Panduit G.75X1WH6 Panduct Base Wiring Duct is 0.92 inches wide, 1.06 inches in depth and 6 feet in length. It features a wide slot design and is made of PVC. It is suitable for reducing scrap and labor costs by protecting the surface during storage, handling, and installation.

• Wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes
• Upper and lower scorelines allows easy finger and sidewall section removals
• Reducing scrap and labor costs by protecting the surface during storage, handling and installations

Product Highlights

The Panduit G.75X1WH6 is ideal for general purpose and indoor applications. It is ARRA, Buy American Act, CE, CSA, EN, IEC, NFPA, RoHS, and UL compliant.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: G.75X1WH6
• Country of Origin: US - United States

Technical Specifications

• Adhesive Backed: Yes
• Application: For reducing scrap and labor costs by protecting the surface during storage, handling, installation, general purpose and indoor applications
• Color: White
• Depth: 1.06 in
• Includes: Base and Cover
• Length: 6 ft
• Manufacturer Part Number: G.75X1WH6
• Material: PVC
• Mounting Type: Hole
• Slot Size: 0.31 in
• Slot Type: Wide Slot
• Standards/Approvals: ARRA Compliant|Buy American Act Compliant|CE 2006/95/EC|CSA C22.2 File No. 18.5-13|EN 50085-1/50085-2-3|IEC 60332-1|NFPA 79-2015 Section 13.3.1/13.5.2|RoHS Compliant|UL Listed|UL 1565
• Type: Type G
• Width: 0.92 in
• Series: PANDUCT Type G
• Base Product Number: G.75X1
• RoHS Status: ROHS3 Compliant
• Brand: Panduct
• Flammability Rating: UL94 V-0
• Color Family: White
• Primary Type: Wiring Duct
• Unit of Measure: FT
