Panduit G.5X2WH6 Wire Duct Slotted Screw 6 feet White

Product Description

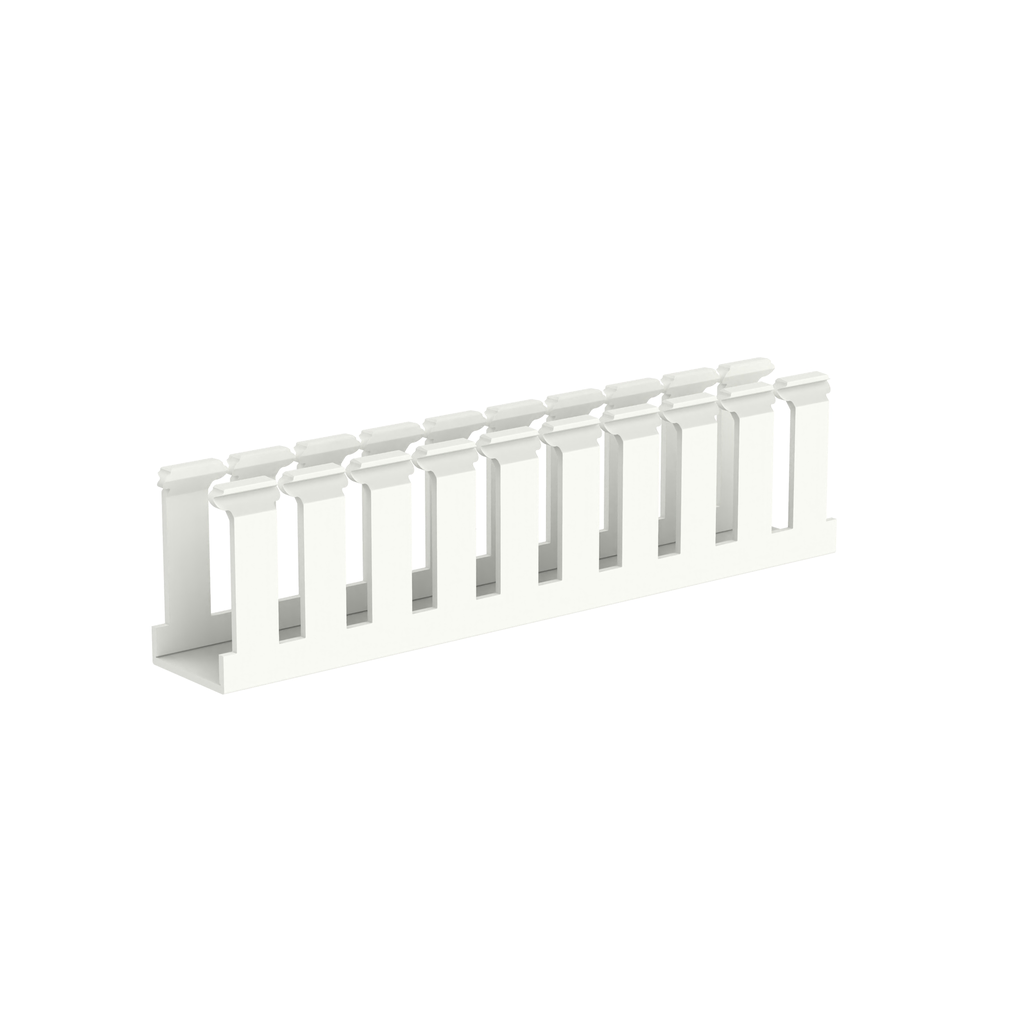

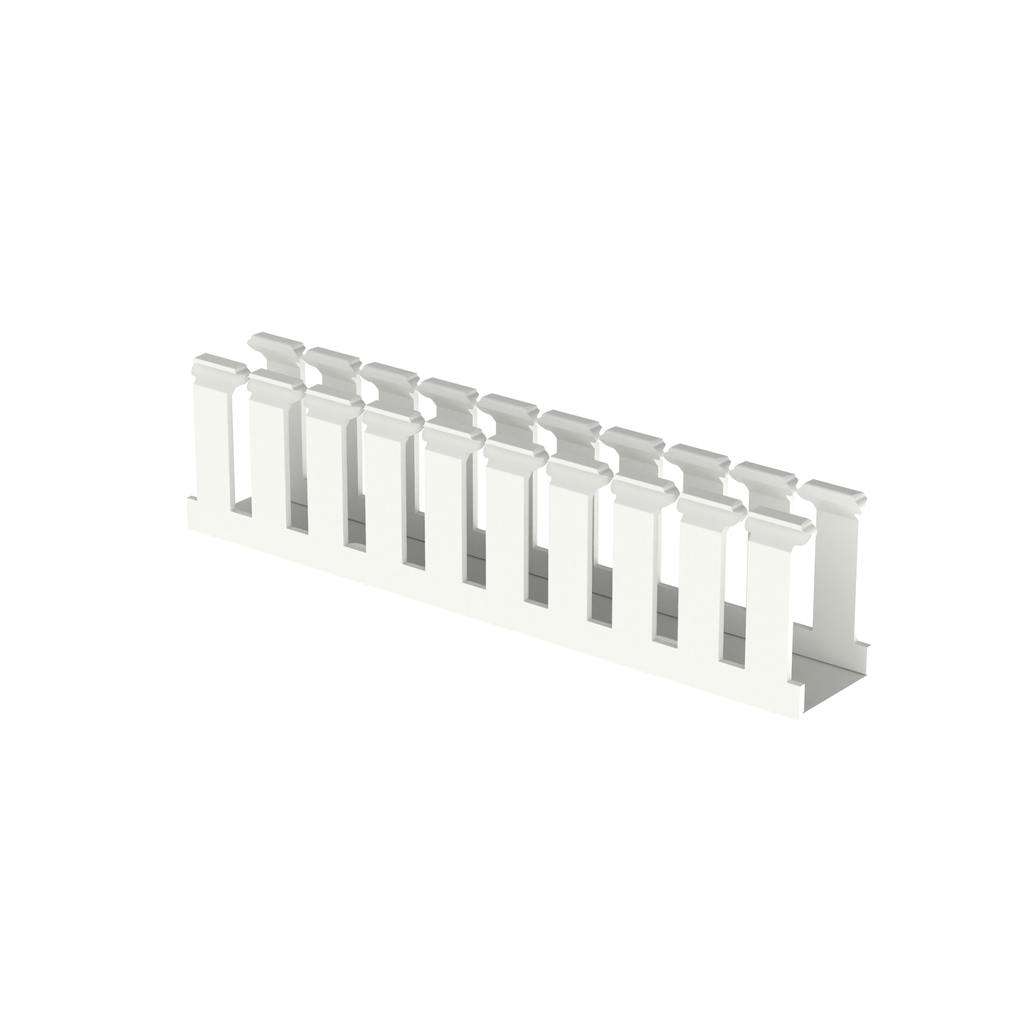

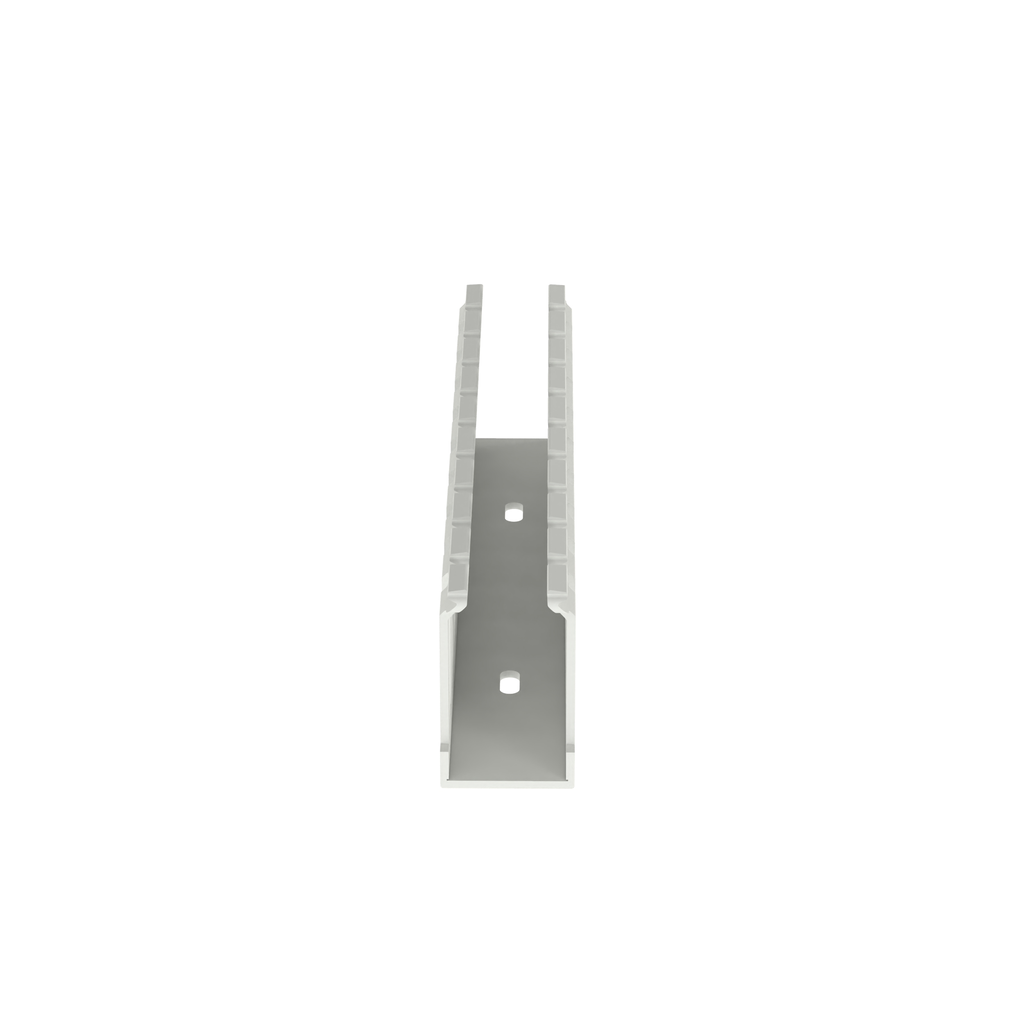

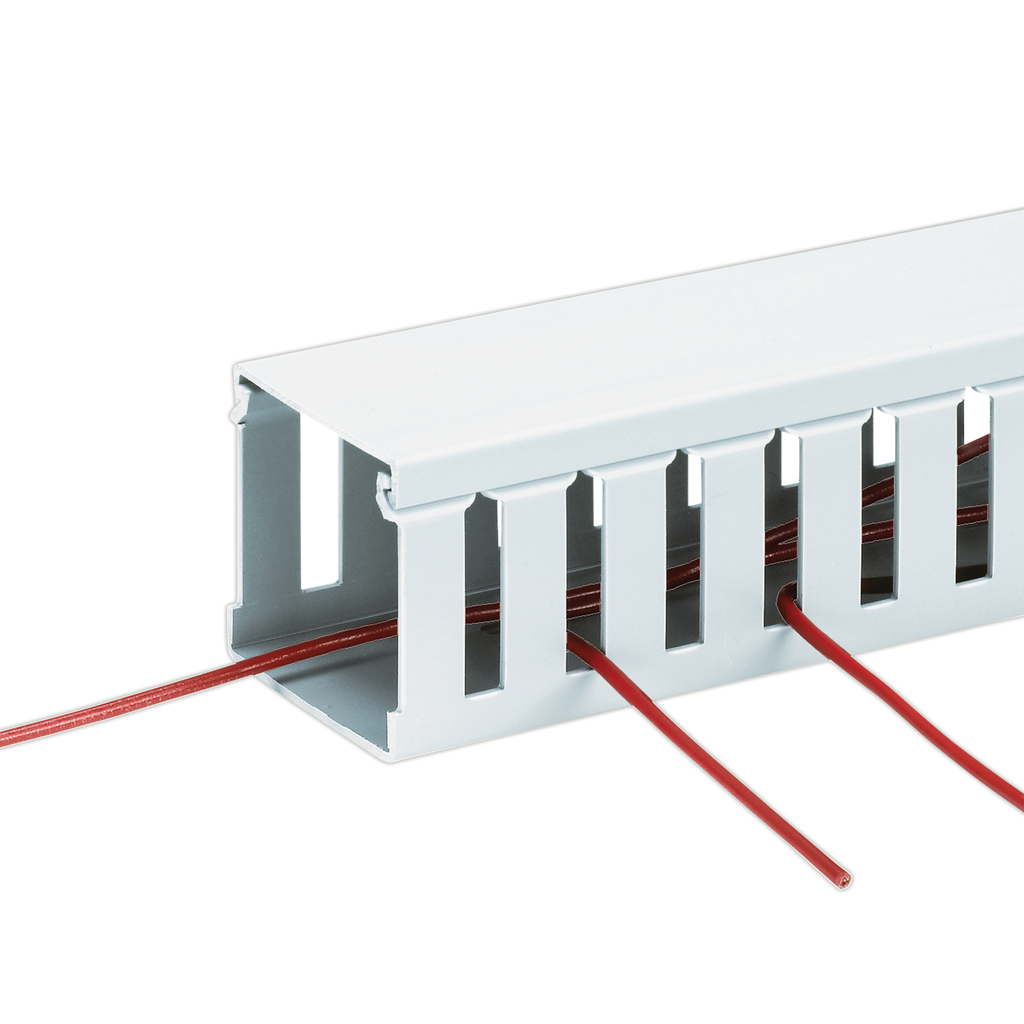

The PANDUIT G.5X2WH6 wire duct is white slotted (raceway) with a base screw and a length of 6.00' (1.83m). Features a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. Ideal for control panel and machine builder applications.

• Wide slot/finger design provides greater sidewall rigidity
• Suitable with a range of wire bundle sizes
• Made from Poly-Vinyl Chloride (PVC)

Product Highlights

The PANDUIT G.5X2WH6 wire duct enhances cable organization with its wide slot design and easy installation.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: G.5X2WH6
• Country of Origin: US - United States

Technical Specifications

• Category: Cables, Wires - Management
• Wire Ducts, Raceways: Wire Ducts, Raceways
• Length: 6.00' (1.83m)
• Manufacturer: Panduit Corp
• Width: 0.690" (17.53mm)
• Series: PANDUCT Type G
• Mounting Type: Screw
• Material: Poly-Vinyl Chloride (PVC)
• Part Status: Active
• Color: White
• Wire Duct Type: Slotted (Raceway), Base
• Base Product Number: G.5X2W
• Height: 2.010" (51.05mm)
• Mount Type: Mounting Holes
• Product Type: Wide Slot Wiring Duct
• Flammability Rating: UL94 V-0
• Color Family: White
• Sub Brand: Panduct
• Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
• Application: Wide Slot Wiring Duct for use in Control Panel and Machine Builder applications
• Type: Wide Slot Wiring Duct
