Panduit G.5X1WH6 wire ducting & raceways slotted duct, pvc, .5 inchesx1 inchesx6 feet

Product Description

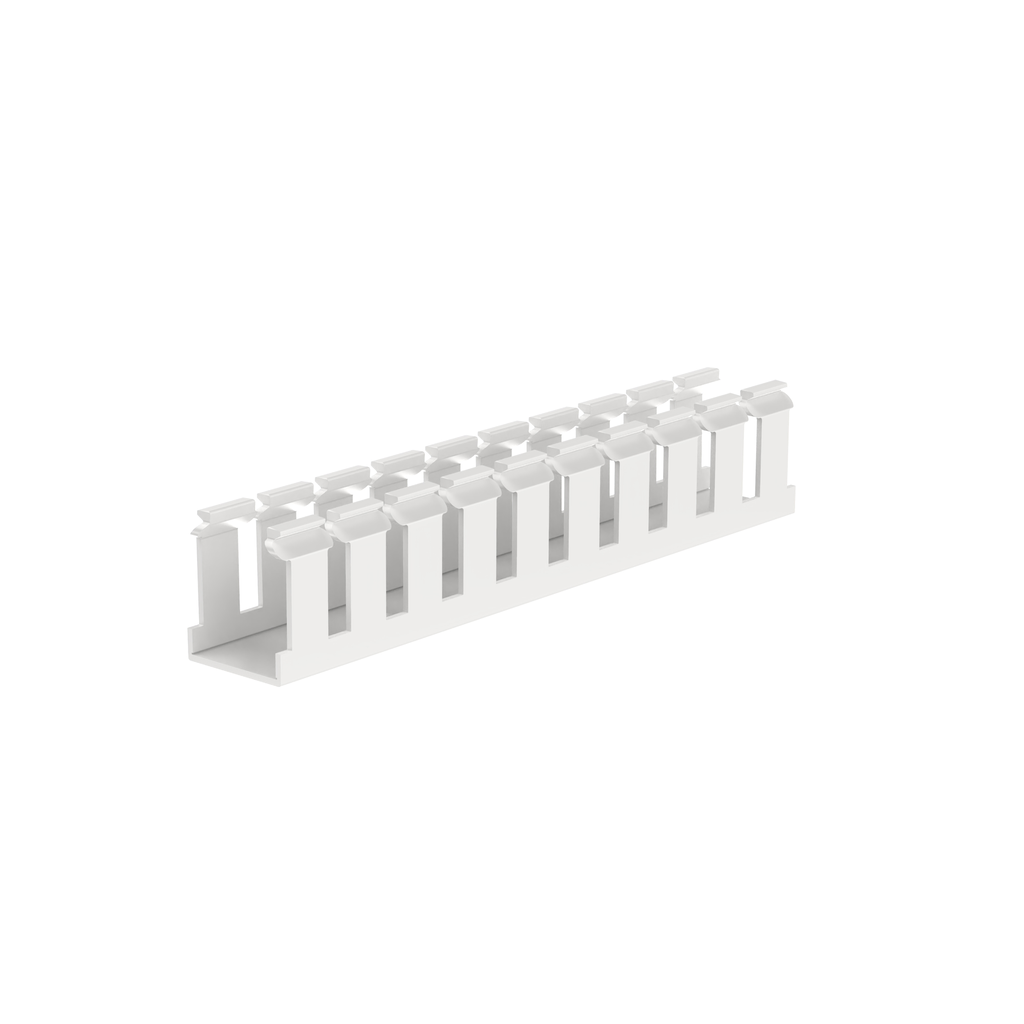

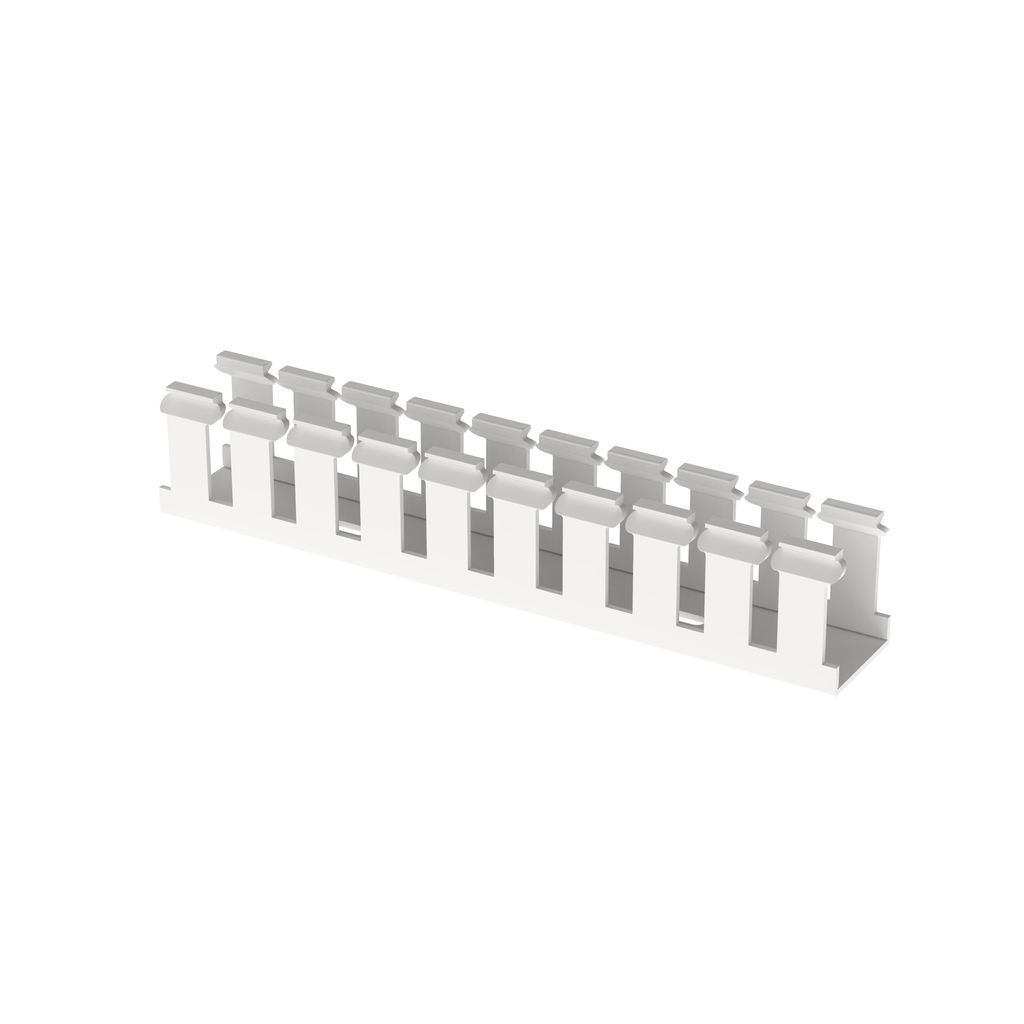

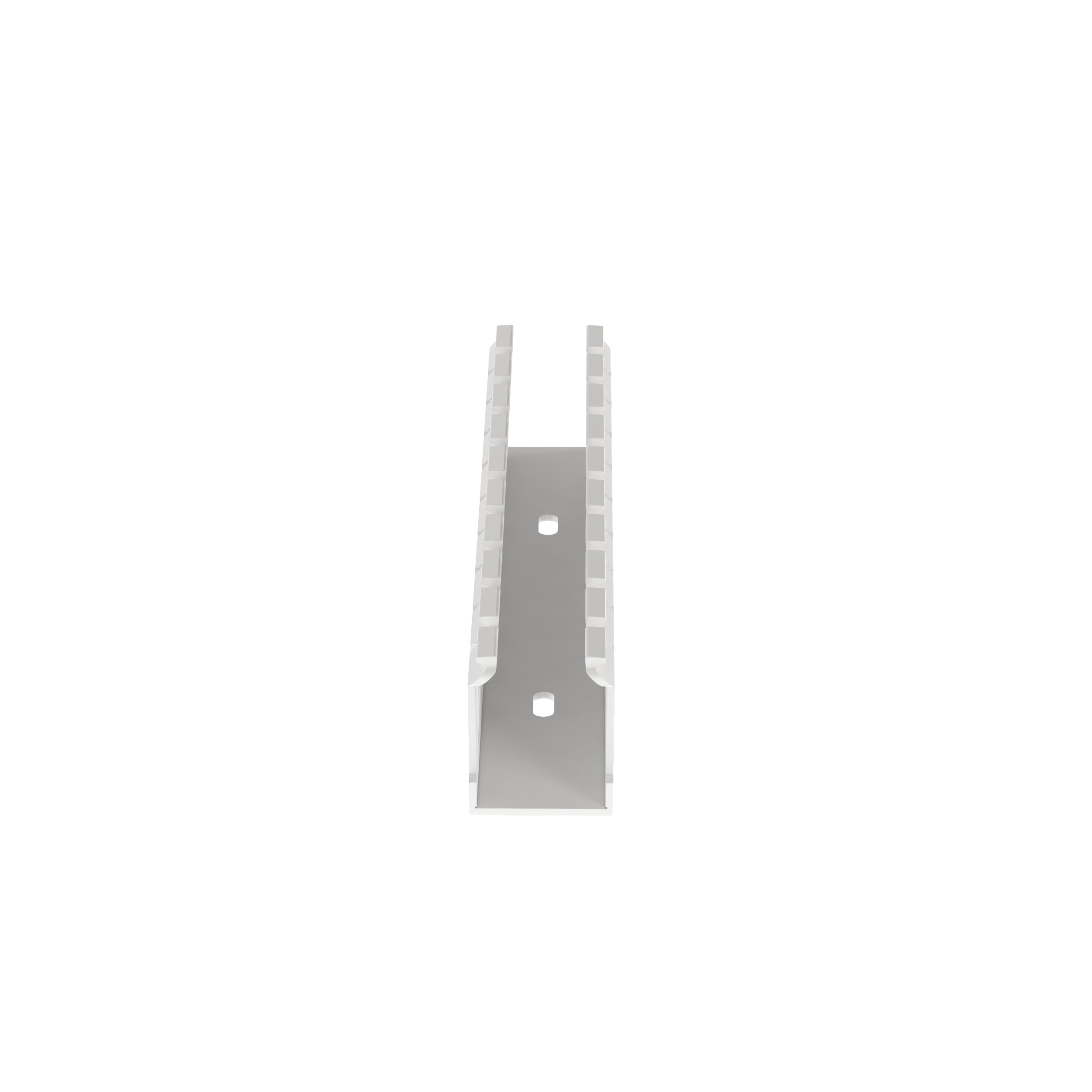

The Panduit G.5X1WH6 is a wire ducting and raceway, featuring a slotted duct design made from PVC. Measuring .5" x 1" x 6', this product is designed for managing and organizing wires and cables. It allows for easy transition of both single conductors and bundled cables.

• Slotted design provides flexibility for wire management
• Constructed from durable PVC material
• Suitable for control panel and machine builder applications

Product Highlights

The Panduit G.5X1WH6 offers a reliable solution for organizing and protecting wires in various applications, ensuring a clean and efficient setup.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: G.5X1WH6
• Country of Origin: US - United States

Technical Specifications

• Category: Cables, Wires - Management
• Wire Ducts, Raceways: Wire Ducts, Raceways
• Length: 6.00' (1.83m)
• Manufacturer: Panduit Corp
• Width: 0.690" (17.53mm)
• Series: PANDUCT Type G
• Mounting Type: Screw
• Material: Poly-Vinyl Chloride (PVC)
• Part Status: Active
• Wire Duct Type: Slotted (Raceway), Base
• Base Product Number: G.5X1W
• Height: 0.990" (25.15mm)
• Application: Wide Slot Wiring Duct for use in Control Panel and Machine Builder applications
• Type: G Wide Slot
• Flammability Rating: UL94 V-0
• Color Family: White
• Includes: Base Only
• Manufacturer Part Number: G.5X1WH6
• Primary Type: Wiring Duct
• Mounting Holes: Mounting Holes
• Color: White
• Standard: RoHS Compliant, UL Recognized, CE Compliant
