Panduit G.5X1LG6 Wiring Duct 0.5 X 1 Inch

Product Description

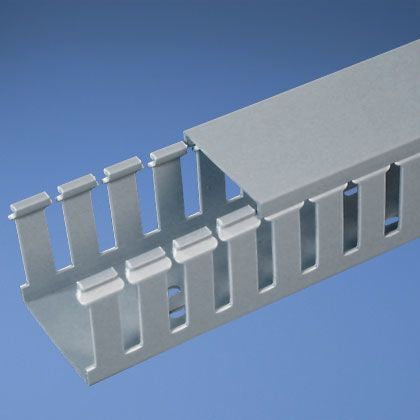

The PANDUIT G.5X1LG6 is a slotted wiring duct designed for organizing and routing low-voltage control wiring and power conductors inside electrical enclosures, panels, and industrial control cabinets. With a nominal 0.5-inch width and 1-inch height profile, this duct provides a compact routing channel suited for tight panel layouts. The slotted sidewall design allows individual wires to exit the duct cleanly at any point along the run, reducing clutter and improving serviceability. Licensed electricians and panel builders install this duct during enclosure assembly to maintain code-compliant wire management and simplify future maintenance access.

This wiring duct is commonly used in residential and commercial electrical panels, industrial control enclosures, motor control centers, and automation cabinets. The low-profile 0.5 x 1 inch cross-section makes it well suited for compact DIN-rail panel builds where space between components is limited. It is sold per foot, allowing installers to cut runs to the exact length needed for a given enclosure layout without material waste.

Key Features

• Slotted sidewalls allow individual wire exits at any point along the duct length
• 0.5-inch width by 1-inch height profile fits tight panel layouts
• Sold per foot for cut-to-length flexibility in enclosure builds
• Designed for use in electrical panels, control cabinets, and industrial enclosures
• Lightweight construction at 0.47 pounds per foot reduces enclosure load

Compatibility

Designed as an OEM-style slotted wiring duct for use with standard DIN-rail panel assemblies and electrical enclosure builds requiring a 0.5-inch wide by 1-inch high wire management channel.

Installation Notes

Installation is typically performed by licensed electricians or panel builders during enclosure assembly. De-energize and lock out the panel before installing or modifying wiring duct runs. Duct is cut to length using a fine-tooth saw or duct cutter; deburr cut ends before routing conductors to prevent insulation damage. Follow NEC guidelines for conductor fill and separation of power and control wiring within the enclosure.

Technical Specifications

• Width: 0.5 inches
• Height: 1 inch
• Weight: 0.47 pounds per foot
• UPC: 07498363880

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: G.5X1LG6
