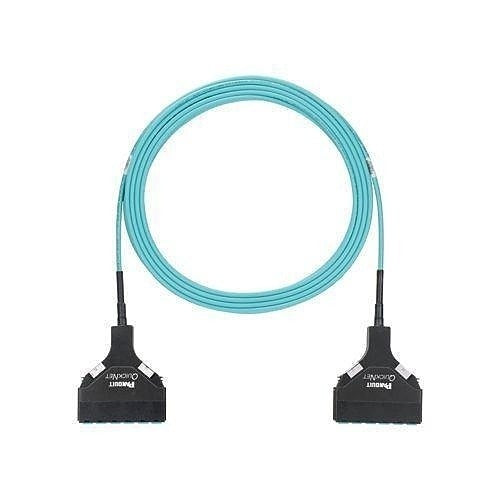

Panduit FZTSPXNXNSNF045 OM4 12-fiber Trunk Cable Ofnp Lc

Product Description

The PANDUIT FZTSPXNXNSNF045 is a pre-terminated OM4 multimode fiber optic trunk cable assembly designed for high-density structured cabling installations. It features a 12-fiber configuration with OFNP (plenum-rated) jacket construction, making it suitable for air-handling spaces where fire-code compliance is required. The assembly terminates with LC connectors on both ends and is engineered to connect to LC-style fiber cassettes in modular patch panel systems. Network installers and low-voltage cabling contractors use this trunk assembly to build scalable backbone infrastructure in data centers and enterprise environments.

This trunk cable assembly is used in structured cabling systems where pre-terminated solutions are preferred over field-terminated runs. It is suited for data center backbone applications, horizontal or vertical cabling between patch panels and fiber cassette modules, and high-density OM4 multimode networks running 10G, 40G, or 100G Ethernet. The plenum-rated jacket meets the requirements for installation in HVAC air-handling plenums without conduit. It ships as a single unit and is installed by certified low-voltage or datacom cabling technicians.

Key Features

• OM4 multimode fiber supports high-bandwidth applications up to 100G Ethernet
• 12-fiber count in a single trunk assembly for high-density routing
• OFNP plenum-rated jacket meets NEC requirements for air-plenum installations
• LC to LC termination compatible with cassette-based modular panel systems
• Pre-terminated factory assembly reduces field labor and termination errors

Compatibility

Designed as an OEM-style replacement and standard trunk assembly for use with LC-port fiber cassette modules in OM4 multimode structured cabling systems.

Installation Notes

Installation should be performed by a qualified low-voltage or datacom cabling technician in accordance with ANSI/TIA-568 structured cabling standards. De-energize active equipment and avoid sharp bend radii below the cable minimum bend radius specification during routing. Plenum-rated assemblies must be installed in accordance with NEC Article 770 requirements for optical fiber cables in air-handling spaces. Inspect LC connector end-faces and clean with an appropriate fiber optic cleaning tool before mating.
