Panduit FZTSLXNXNSNM010 OM4 12-fiber Lszh Lc Trunk

Product Description

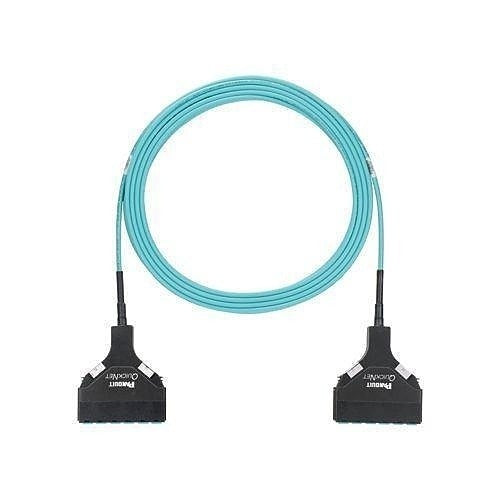

The PANDUIT FZTSLXNXNSNM010 is an OM4 multimode 12-fiber trunk cable assembly designed for high-density structured cabling installations. Terminated with LC connectors on both ends for cassette-based patching, it uses a low-smoke zero-halogen (LSZH) jacket rated for environments where fire-code compliance demands reduced toxic gas emission. This trunk assembly is a core component in modular fiber infrastructure, allowing network technicians and low-voltage cabling contractors to build scalable, plug-and-play backbone links between patch panels, fiber cassettes, and active equipment.

This trunk cable is suited for data center, enterprise LAN, and campus backbone applications where OM4 multimode fiber supports high-speed transmission over relatively short runs. The LC-to-cassette configuration pairs directly with modular cassette housings, streamlining high-density port management. It is typically installed in environments requiring LSZH compliance, such as plenum-adjacent spaces, European-spec facilities, or projects governed by fire safety codes mandating low-halogen materials. Installation is performed by licensed low-voltage or data cabling technicians.

Key Features

• OM4 multimode fiber supports 40G and 100G applications over standard short-reach distances
• 12-fiber count in a single trunk assembly for efficient backbone routing
• LSZH jacket reduces toxic smoke and halogen gas emission in the event of fire
• LC connectors on both ends provide low-loss, high-density termination compatible with standard cassette housings
• Factory-terminated assembly eliminates field termination and reduces installation error

Compatibility

Designed as an OEM-style trunk assembly for use with LC-port fiber cassette housings in OM4 multimode structured cabling systems.

Installation Notes

Installation should be performed by a qualified low-voltage or fiber cabling technician familiar with structured cabling standards such as ANSI/TIA-568 and ISO/IEC 11801. Inspect connector end-faces with a fiber microscope before mating, and clean connectors using appropriate lint-free tools prior to insertion. Maintain manufacturer-specified minimum bend radius throughout the cable routing path to avoid optical loss. Deactivate connected active equipment at the switch or transceiver level before disconnecting live fiber links.
