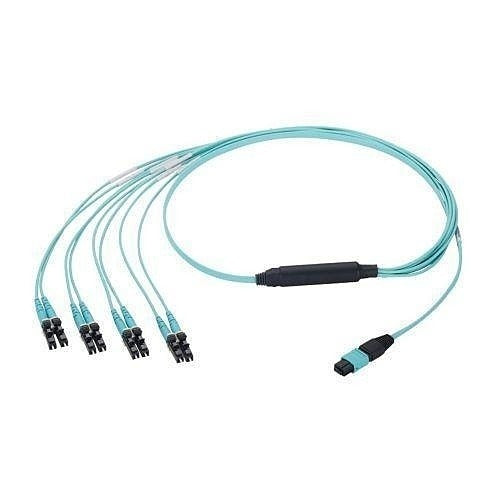

Panduit FZ8RP5NLSQNM003 OM4 8-fiber Mpo to Lc Harness

Product Description

The PANDUIT FZ8RP5NLSQNM003 is an OM4 multimode fiber optic harness cable assembly that breaks out a single MPO female connector into individual LC connectors across 8 fibers. Rated OFNP for plenum-rated installations, this assembly is suitable for use in air-handling spaces where fire and smoke spread codes require plenum-grade cable. It is a factory-terminated, pre-polished assembly designed for structured cabling installations in data centers, telecom rooms, and enterprise network environments. Installation is typically performed by low-voltage cabling technicians or network infrastructure specialists.

This harness assembly is used in high-density fiber backbone and horizontal distribution applications where OM4 multimode performance is required. The MPO trunk-to-LC breakout configuration makes it well suited for connecting MPO patch panels or pre-terminated trunk systems to LC-port network switches, servers, or active equipment. Typical install scenarios include top-of-rack and end-of-row cabling architectures in data center environments, as well as high-bandwidth enterprise LAN backbones requiring OM4 performance characteristics.

Key Features

• OM4 multimode fiber supports high-bandwidth applications including 40G and 100G parallel optic links
• 8-fiber count in a single MPO female to 8 individual LC connector breakout configuration
• OFNP plenum rating meets code requirements for installation in air-handling plenum spaces
• Factory-terminated and pre-polished for consistent insertion loss and immediate deployment
• Sold as a single assembly (unit of measure: EA)

Compatibility

Designed as an OEM-style harness assembly for use with OM4 multimode MPO trunk systems and LC-port active equipment in structured fiber cabling installations.

Installation Notes

This assembly should be installed by qualified low-voltage cabling technicians in accordance with ANSI/TIA-568 structured cabling standards and applicable local codes. Power down or place active equipment in a safe state before connecting or disconnecting fiber optic assemblies. Avoid exceeding the minimum bend radius of the cable during routing to prevent signal degradation. Clean all fiber end faces with an approved fiber optic cleaning tool before mating connectors.
