Panduit FZ2RPZNZNONM034 OM4 Fiber Patch Cord 2F Ofnp

Product Description

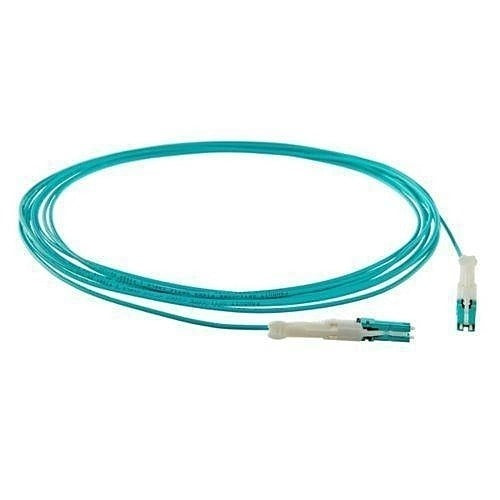

The PANDUIT FZ2RPZNZNONM034 is an OM4 multimode fiber optic patch cord designed for high-density structured cabling installations. It features a 2-fiber, 2mm plenum-rated (OFNP) construction with CS-style connectors on both ends. The OFNP jacket rating makes it suitable for air-handling plenum spaces where fire and smoke spread ratings are required by code. Licensed low-voltage cabling technicians and network infrastructure installers are the primary trades working with this assembly. The CS connector form factor supports high-density panel and transceiver applications where space efficiency matters.

This patch cord is used in horizontal and backbone cabling runs within commercial and enterprise environments where OM4 multimode performance is specified. Plenum-rated cabling is required when cables are routed through air-handling spaces such as raised floors used as return air plenums or suspended ceiling plenum zones. CS connectors are common in high-density data center and telecommunications room patching applications. This assembly ships as a single unit and is ready for field installation without additional termination work.

Key Features

• OM4 multimode fiber supports high-bandwidth applications over multimode infrastructure
• 2mm duplex construction with 2-fiber configuration for standard duplex data links
• OFNP plenum-rated jacket meets fire and smoke requirements for air-handling spaces per NEC Article 770
• CS connector interface supports high-density patching in space-constrained panels and transceivers
• Factory-terminated and tested assembly eliminates field termination labor

Compatibility

Designed as an OEM-style patch cord for use with OM4 multimode fiber optic panels, switches, and transceivers equipped with CS-type ports in plenum-rated structured cabling systems.

Installation Notes

Installation should be performed by a qualified low-voltage cabling technician familiar with TIA-568 and NEC Article 770 requirements. Inspect connector end-faces for contamination and clean per manufacturer guidelines before mating. Do not exceed the minimum bend radius of the cable during routing, as exceeding it can degrade optical performance. Ensure all patching hardware and pathway products in the plenum zone also carry the appropriate plenum ratings before installation.
