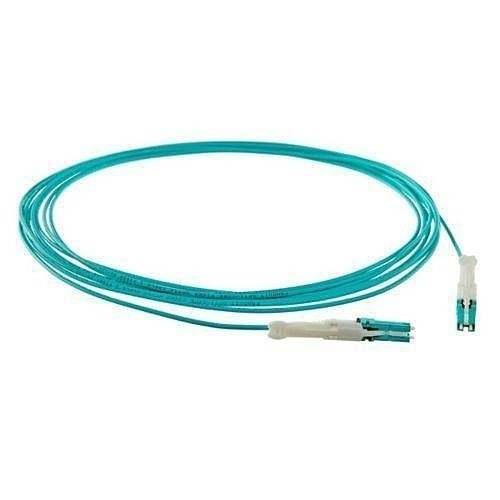

Panduit FZ2RPZNZNONM003 OM4 Fiber Patch Cable 2F Ofnp

Product Description

The PANDUIT FZ2RPZNZNONM003 is an OM4 multimode fiber optic patch cable rated for plenum environments. It features a 2-fiber, 2mm jacket construction and terminates with CS-style connectors on each end. The cable carries an OFNP (Optical Fiber Nonconductive Plenum) rating, making it suitable for installation in air-handling spaces where fire and smoke performance requirements apply. Network technicians and low-voltage cabling contractors install this type of assembly when connecting active equipment in high-density data center or enterprise structured cabling environments. OM4 multimode glass supports high-bandwidth applications at distances typical of intra-building backbone and horizontal runs.

This patch cable is intended for use in plenum-rated horizontal or equipment-room runs within data centers, enterprise LAN closets, and commercial buildings where OFNP-rated cabling is required by code. The CS connector format supports high-density patching in modern switch and transceiver deployments. The 2mm jacketed design keeps bend radius manageable in congested pathways and cable managers. Low-voltage cabling technicians and network infrastructure installers are the primary trades for this assembly.

Key Features

• OM4 multimode fiber supports high-bandwidth, short-reach data center applications
• OFNP plenum jacket rating meets fire and smoke requirements for air-handling spaces
• 2mm jacket diameter reduces bulk in high-density cable management environments
• CS connector interface designed for high-density patching panels and transceivers
• 2-fiber construction supports duplex transmit and receive signal paths

Compatibility

Designed as an OEM-style patch assembly for use with CS-compatible ports and OM4 multimode fiber infrastructure in structured cabling systems.

Installation Notes

Installation should be performed by a qualified low-voltage cabling technician familiar with TIA-568 structured cabling standards. De-energize or place active ports in a safe state before connecting or disconnecting fiber assemblies to avoid exposure to laser light. Observe minimum bend radius requirements during routing through cable managers and conduit to prevent signal loss or fiber damage. Do not exceed the cable's rated pulling tension when dressing through pathways.
