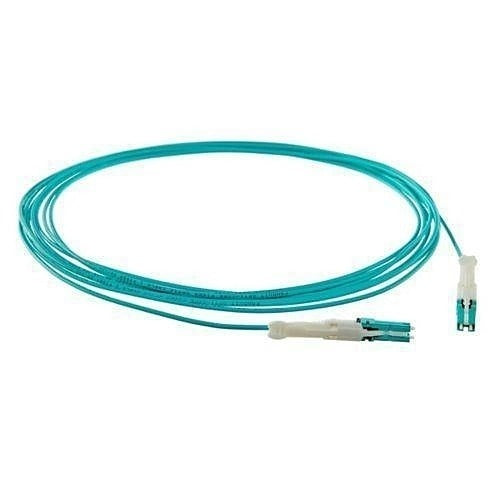

Panduit FZ2RPZNZNNNF021 OM4 Fiber Optic Patch Cord

Product Description

The PANDUIT FZ2RPZNZNNNF021 is a factory-terminated OM4 multimode fiber optic patch cord built for high-density structured cabling environments. This 2-fiber assembly uses a 2mm diameter cable jacket rated OFNP (plenum), making it suitable for installation in air-handling spaces where fire and smoke codes require plenum-rated cabling. The polished PC (physical contact) end-face finish reduces back-reflection and insertion loss. Licensed low-voltage cabling contractors and data center technicians install this cord to interconnect active equipment, patch panels, and fiber enclosures.

This patch cord is designed for use in multimode OM4 fiber infrastructures supporting high-speed data transmission in enterprise data centers, telecommunications rooms, and campus backbone applications. The OFNP plenum rating satisfies the requirements of installations routed through return-air plenums. The 2-fiber configuration suits duplex transceiver connections commonly found in SAN, Ethernet, and fiber channel deployments.

Key Features

• OM4 multimode fiber supports high-bandwidth applications including 40G and 100G Ethernet over standard multimode distances
• OFNP plenum-rated jacket meets fire and smoke requirements for air-handling space installations
• 2mm cable diameter suits high-density routing in patch panels and fiber enclosures
• PC-polished end faces provide low insertion loss and reduced back-reflection
• Factory-terminated and 100 percent end-face inspected for consistent performance

Compatibility

Designed as an OEM-style replacement and standard patch cord for OM4 multimode fiber optic systems using compatible duplex LC or other keyed connector interfaces as specified by the installed infrastructure.

Installation Notes

This patch cord is installed by licensed low-voltage or data cabling technicians in accordance with TIA-568 and applicable local codes. Before routing or connecting, verify that all active ports are powered down or in a safe standby state and that laser sources are disabled. Do not bend the cable beyond the minimum bend radius, and avoid kinking or crushing the jacket during routing. Inspect end faces with a fiber inspection scope before mating connectors to confirm cleanliness.
