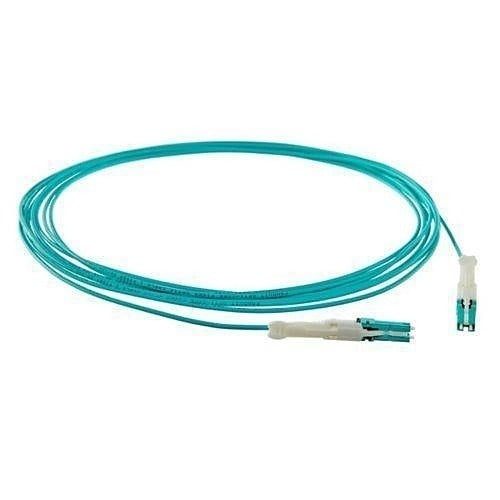

Panduit FZ2RPZNZNNNF010 OM4 Duplex Fiber Optic Assembly

Product Description

The PANDUIT FZ2RPZNZNNNF010 is a 2-fiber duplex fiber optic cable assembly built for structured cabling installations in commercial and enterprise environments. Constructed with OM4 multimode fiber, this assembly uses a 2mm cordage diameter and carries an OFNP (optical fiber nonconductive plenum) rating, making it suitable for deployment in air-handling spaces and plenum ceiling environments where fire and smoke ratings are required by code. The polished connectors on each end are factory-terminated and factory-tested, reducing installation time and ensuring consistent insertion loss performance. Network technicians and low-voltage contractors are the primary installers for this type of assembly.

This cable assembly is designed for use in high-bandwidth multimode fiber runs common in data centers, server rooms, and enterprise LAN backbones. OM4 fiber supports 40G and 100G Ethernet applications over appropriate distances. The OFNP plenum jacket rating makes it appropriate for above-ceiling horizontal runs where building codes require plenum-rated cabling. It ships as a single assembly unit, ready for direct installation between patch panels, switches, transceivers, or fiber distribution units.

Key Features

• OM4 multimode fiber core supports high-bandwidth 40G and 100G applications
• OFNP plenum-rated outer jacket meets fire and smoke requirements for air-handling spaces
• 2-fiber duplex configuration for bidirectional transmission over a single assembly
• 2mm cordage diameter provides flexibility for tight routing in structured cabling pathways
• Factory-terminated and polished connectors for consistent, field-ready performance

Compatibility

Designed as an OEM-style fiber optic patch cord for use with OM4-compatible multimode fiber optic ports, patch panels, and fiber distribution equipment in structured cabling systems.

Installation Notes

Installation should be performed by a qualified low-voltage technician or registered communications distributor familiar with TIA-568 structured cabling standards. Inspect connector end-faces for contamination before mating and clean with approved fiber optic cleaning tools if needed. Never exceed the minimum bend radius of the cordage during routing, and avoid pinching or kinking the jacket. Power down or disable optical transmitters at the source port before handling connector end-faces to avoid exposure to laser light.
