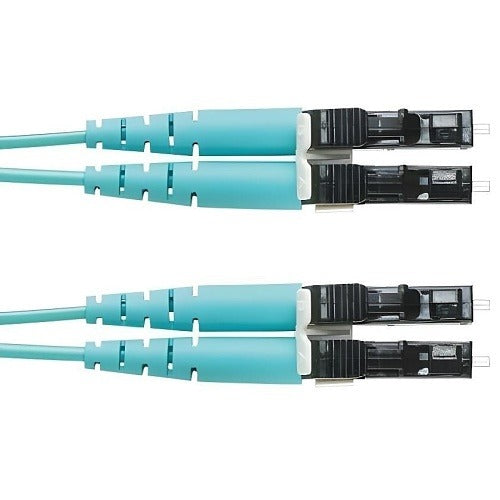

Panduit FZ2ERLNLNSNM026 OM4 Lc Duplex Fiber Patch Cable

Product Description

The PANDUIT FZ2ERLNLNSNM026 is an OM4 multimode duplex fiber optic patch cable terminated with LC connectors on both ends. Built on a 1.6mm diameter cable construction with an OFNR (Optical Fiber Nonconductive Riser) rating, this assembly is suited for high-bandwidth structured cabling installations where riser-rated pathways are required. The duplex LC configuration supports full-duplex transmission across two fibers, making it appropriate for Ethernet, SAN, and data center interconnect applications. Network technicians and low-voltage cabling installers typically deploy this cable in horizontal or riser runs between active equipment and patch panels.

This patch cable is designed for use in commercial and enterprise environments requiring OM4-rated multimode performance. OM4 glass supports laser-optimized transmission and is commonly deployed with 10GbE, 40GbE, and 100GbE active equipment. The LC duplex form factor is standard in high-density fiber panels, switches, and transceivers found in data centers, telecom rooms, and server closets. The OFNR jacket rating qualifies this cable for installation in riser spaces between floors without additional conduit, per applicable fire codes.

Key Features

• OM4 multimode fiber supports high-bandwidth 10GbE, 40GbE, and 100GbE applications
• Duplex LC connectors on both ends for full-duplex links
• 1.6mm cable diameter for flexible routing in dense enclosures
• OFNR riser-rated jacket suitable for vertical riser pathway installations
• 2-fiber construction for standard duplex transceiver interfaces

Compatibility

Designed as an OEM-style replacement or standard installation patch cable for OM4 multimode duplex LC fiber systems in riser-rated structured cabling environments.

Installation Notes

Installation should be performed by a qualified low-voltage cabling technician or licensed network infrastructure installer. Disable active ports on connected equipment before seating or removing LC connectors to prevent damage to transceivers. Observe minimum bend radius requirements for the 1.6mm cable construction to avoid attenuation or physical damage to the fiber. Follow applicable ANSI/TIA-568 and local fire code requirements governing riser-rated fiber routing.
