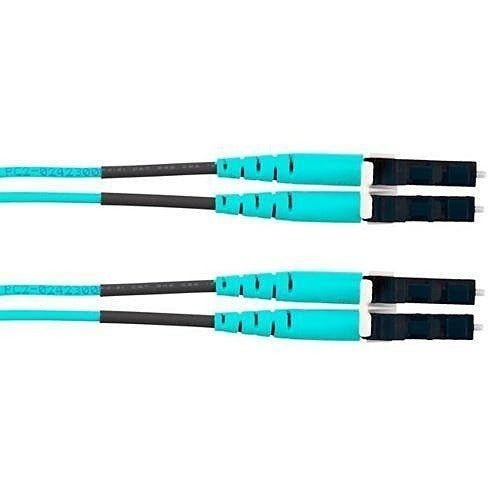

Panduit FZ2ERLNLNSNM020 OM4 Duplex Lc Fiber Patch Cable

Product Description

The PANDUIT FZ2ERLNLNSNM020 is a 2-fiber OM4 duplex fiber optic patch cable with LC connectors on both ends, designed for high-density multimode network installations. Built with a 1.6mm cordage diameter and OFNR (Optical Fiber Nonconductive Riser) rated jacket, this cable meets riser-rated fire code requirements for vertical runs between floors. It ships as a single assembly and is suited for structured cabling installations in data centers, enterprise networks, and telecommunications rooms where OM4 performance is specified.

This patch cable is used in multimode fiber optic network environments that require OM4-grade performance, typically supporting 10G, 40G, or 100G transmission depending on link length and equipment. The duplex LC form factor is a standard choice for SFP and SFP+ transceiver ports on switches, routers, and fiber channel equipment. Installation scenarios include patch panel to switch connections, server-to-switch uplinks, and cross-connect applications in riser pathways. The OFNR jacket rating makes it code-compliant for use inside building risers without conduit where permitted by local code.

Key Features

• OM4 multimode fiber grade supports high-bandwidth transmission applications
• Duplex LC connectors on both ends for compatibility with standard SFP and SFP+ ports
• 1.6mm cordage diameter provides flexibility in high-density patching environments
• OFNR-rated jacket meets riser fire code requirements for vertical cable runs
• 2-fiber construction supports full-duplex communication on a single cable assembly
• Factory-terminated and tested assembly reduces installation time and termination errors

Compatibility

Designed as an OEM-style OM4 duplex LC patch cable for use with multimode fiber optic equipment featuring LC-type ports in riser-rated structured cabling systems.

Installation Notes

Fiber optic patch cables are installed by network technicians and low-voltage cabling professionals. Always inspect LC ferrules for contamination before mating and clean with appropriate fiber optic cleaning tools prior to connection. Observe minimum bend radius during routing to avoid signal loss or physical damage to the fiber. Riser-rated cable installations must comply with local building and fire codes, including NFPA 70 (NEC) Article 770 requirements for optical fiber cabling.
