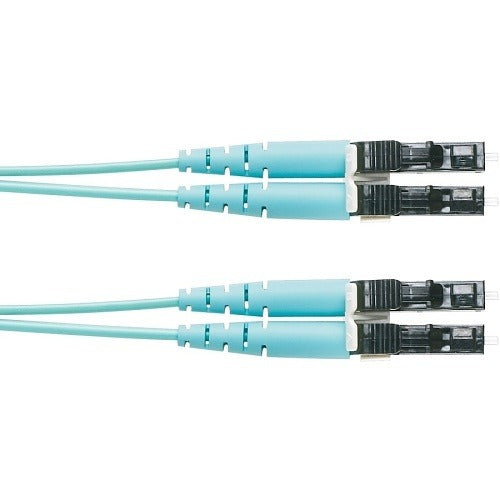

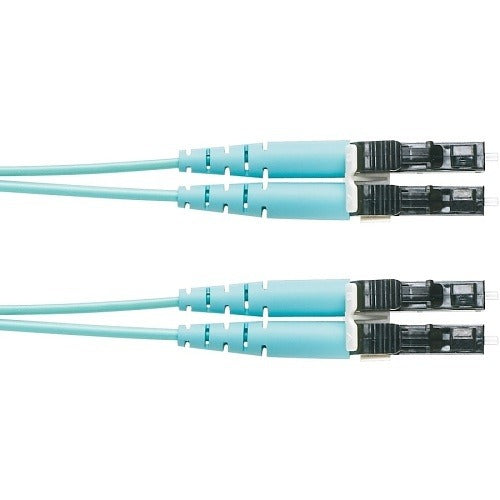

Panduit FZ2ERLNLNSNM001 OM4 Duplex Lc Fiber Patch Cable

Product Description

The PANDUIT FZ2ERLNLNSNM001 is an OM4 multimode duplex fiber optic patch cable with LC connectors on both ends, designed for high-density structured cabling installations. Built with a 1.6mm duplex jacket and rated OFNR (Optical Fiber Nonconductive Riser), this cable meets riser-rated fire code requirements for vertical runs between floors. It ships as a single unit and is handled and installed by licensed low-voltage cabling technicians and network infrastructure professionals. The PC (physical contact) polish on the LC connectors delivers reliable optical performance in multimode fiber links.

This patch cable is suited for OM4 multimode fiber runs in commercial and enterprise environments, including data centers, server rooms, and structured cabling distribution frames. It connects active equipment such as switches, media converters, and fiber patch panels using standard LC duplex ports. The 1.6mm duplex cordage keeps bend radius manageable in high-density patching environments.

Key Features

• OM4 multimode fiber supports 10G, 40G, and 100G applications over specified distances
• LC duplex connectors on both ends with PC polish for low insertion loss
• 1.6mm duplex jacket construction for flexible routing in tight cable management
• OFNR riser-rated jacket meets NEC Article 770 requirements for riser installations
• 2-fiber construction in a single duplex assembly

Compatibility

Designed as an OEM-style replacement and standard-fit patch cable for LC duplex ports on OM4 multimode fiber equipment and patch panels.

Installation Notes

Installation should be performed by a qualified low-voltage cabling technician familiar with fiber optic handling practices. Always inspect LC connector ferrules for contamination before mating and clean with appropriate fiber optic cleaning tools prior to insertion. Observe minimum bend radius guidelines to avoid signal degradation or physical damage to the fiber. Riser-rated jacket installation must comply with NEC Article 770 and local building codes governing optical fiber cabling.
