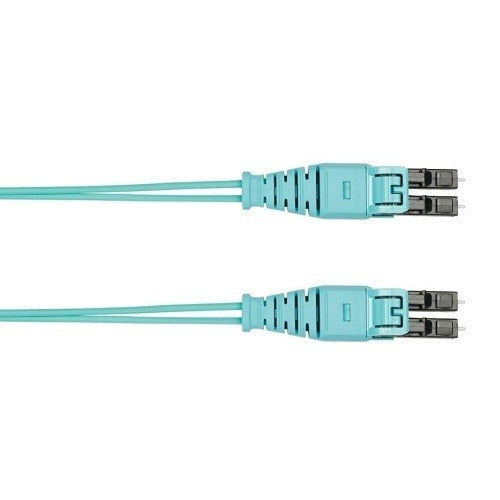

Panduit FZ2ELQ1Q1NNM047 OM4 Duplex Fiber Patch Cord

Product Description

The PANDUIT FZ2ELQ1Q1NNM047 is a duplex fiber optic patch cord built on OM4 multimode fiber. It features a 1.6mm low-smoke zero-halogen (LSZH) jacket and a PushPull locking connector design that simplifies installation and removal in high-density panels and enclosures. The physical contact (PC) polish on the ferrules delivers reliable signal transmission with low insertion loss. Network technicians and structured cabling installers use this cord to interconnect active equipment, patch panels, and fiber distribution units in data centers, enterprise LAN environments, and telecommunications rooms.

This patch cord is suited for high-density OM4 multimode fiber installations where bend-radius management and safe halogen-free jacket materials are required. The LSZH jacket is appropriate for plenum-adjacent or enclosed spaces where low smoke emission during a fire event is a priority per applicable building and fire codes. The PushPull tab mechanism allows the cord to be seated and released without disturbing adjacent cables, making it well suited to fully populated patch panels and switch ports.

Key Features

• OM4 multimode fiber supports high-bandwidth applications at extended distances
• Duplex 2-fiber construction for full-duplex transmit and receive in a single cord
• 1.6mm LSZH jacket reduces smoke and toxic gas emission in enclosed spaces
• Physical contact (PC) ferrule polish for low insertion loss and reliable signal integrity
• PushPull connector design allows high-density installation and removal without tools

Compatibility

Designed as an OEM-style patch cord for use with OM4 multimode fiber optic ports, patch panels, and fiber distribution units accepting compatible duplex connectors with a PushPull locking interface.

Installation Notes

This patch cord is installed by licensed or certified structured cabling technicians following ANSI/TIA-568 and applicable local fire and building codes. Inspect the ferrule end-faces for contamination before mating and clean per manufacturer guidance using an appropriate fiber optic cleaning tool. Do not exceed the minimum bend radius of the 1.6mm cable, and do not force the connector if resistance is felt during seating. Deactivate the connected port or power down the associated transceiver before handling to avoid exposure to laser light.
