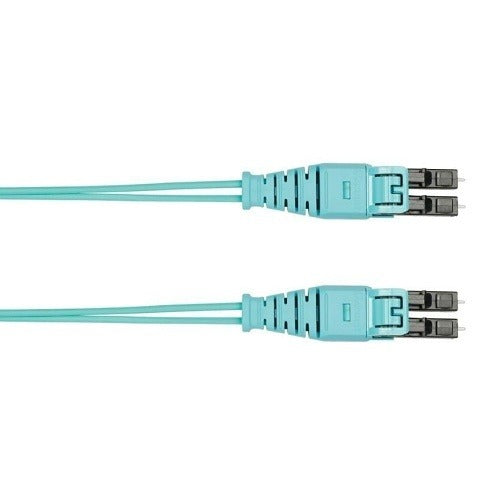

Panduit FZ2ELQ1Q1NNM037 OM4 Duplex Fiber Patch Cord

Product Description

The PANDUIT FZ2ELQ1Q1NNM037 is a 2-fiber OM4 duplex fiber optic patch cord built with a 1.6mm diameter cable jacket and a Low Smoke Zero Halogen (LSZH) outer sheath. It features physical contact (PC) polished ferrules and a push-pull connector design for secure, tool-free mating and clean disconnection in dense panel environments. This patch cord is used in structured cabling installations where high-bandwidth multimode fiber runs are required. Licensed electricians and low-voltage cabling technicians are the primary installers of this type of assembly.

This patch cord is suited for data center, enterprise LAN, and telecommunications room applications where OM4 multimode fiber infrastructure is in place. The LSZH jacket makes it appropriate for use in plenum-adjacent or enclosed spaces where reduced smoke and halogen-free emissions are required by local fire or building codes. The push-pull tab connector simplifies moves, adds, and changes in high-density fiber panels and patch fields without specialized tools.

Key Features

• OM4 multimode fiber supports high-bandwidth applications including 40G and 100G Ethernet over supported distances
• 2-fiber duplex configuration for standard bidirectional fiber links
• 1.6mm cable diameter provides flexibility in tight routing and high-density enclosures
• Physical contact (PC) polish on ferrules reduces back reflection and insertion loss
• LSZH jacket meets low smoke and halogen-free requirements for enclosed or sensitive environments
• Push-pull connector design enables fast, secure mating and removal in dense patch fields

Compatibility

Designed as an OEM-style assembly for use with OM4 multimode fiber optic panels, switches, and equipment ports accepting the applicable push-pull style connector format.

Installation Notes

Installation should be performed by a qualified low-voltage cabling technician or licensed electrician familiar with fiber optic handling procedures. Always inspect ferrule end-faces with an approved fiber inspection scope before mating connectors, and clean end-faces per manufacturer guidelines to prevent contamination-related signal loss. Route the cable without exceeding the minimum bend radius specified for 1.6mm fiber assemblies. Where LSZH jackets are required by local building or fire codes, verify compliance with the authority having jurisdiction before installation.
