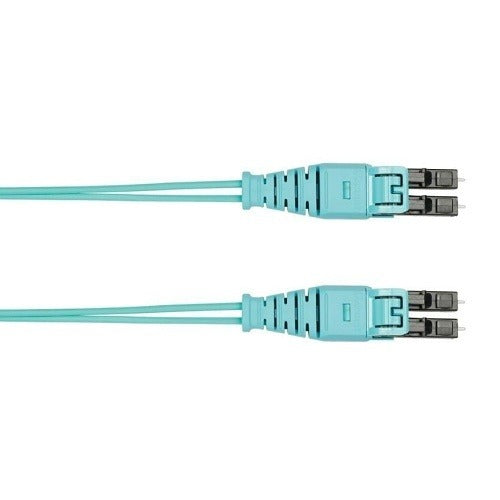

Panduit FZ2ELQ1Q1NNM011 OM4 Duplex Fiber Patch Cord

Product Description

The PANDUIT FZ2ELQ1Q1NNM011 is a duplex OM4 multimode fiber optic patch cord designed for high-density structured cabling installations. Built with a 1.6mm LSZH (Low Smoke Zero Halogen) jacket, it is suited for environments where flame-spread and toxic smoke emission must be minimized, such as plenum spaces, data centers, and public buildings. The cord uses a PushPull LC connector interface on both ends, enabling secure one-handed insertion and extraction in tight, high-density panels. This patch cord is typically installed by licensed low-voltage cabling technicians and network infrastructure specialists.

This patch cord is used in enterprise data centers, telecommunications rooms, and structured cabling backbone applications requiring OM4-rated multimode fiber performance. The duplex 2-fiber configuration supports bidirectional transmission over LC-to-LC connections. LSZH jacket compliance makes it appropriate for installations governed by fire safety codes in commercial and institutional buildings where halogen-free materials are specified.

Key Features

• OM4 multimode fiber supports high-bandwidth applications including 40G and 100G Ethernet over appropriate distances
• Duplex 2-fiber construction enables full-duplex bidirectional data transmission
• 1.6mm LSZH jacket reduces toxic smoke and flame spread in enclosed or occupied spaces
• PushPull LC connector design allows single-handed insertion and removal in dense patch panels
• LC-to-LC connector interface compatible with standard SFP and SFP+ transceiver ports

Compatibility

Designed as an OEM-style patch cord for use with LC-port fiber optic patch panels, switches, and transceivers requiring OM4 multimode duplex connections in structured cabling systems.

Installation Notes

Installation should be performed by a qualified low-voltage cabling technician familiar with fiber optic handling practices. Always inspect ferrule end-faces with a fiber inspection scope before mating connectors, and clean end-faces per IEC 61300-3-35 guidelines. Avoid bending the cable below the minimum bend radius to prevent signal loss or fiber damage. Ensure patch panel ports are powered down or that laser sources are disabled before disconnecting live fiber links.
