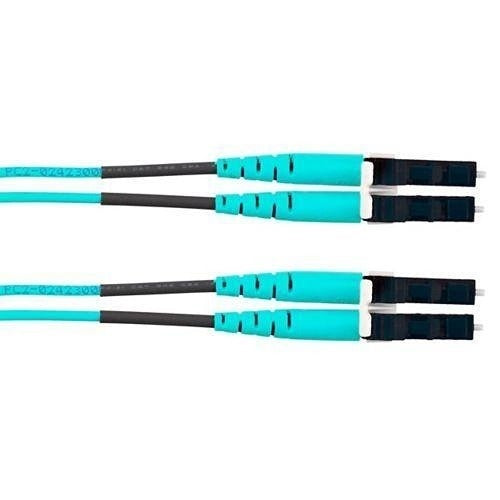

Panduit FZ2ELLNLNSNM025 OM4 Duplex Lc Fiber Patch Cable

Product Description

The PANDUIT FZ2ELLNLNSNM025 is a 2-fiber OM4 duplex LC fiber optic patch cable designed for high-density structured cabling installations. It features a 1.6mm low-smoke zero-halogen (LSZH) jacket, making it suitable for environments where flame spread and toxic smoke emissions are a concern. The cable uses a polished physical contact (PC) ferrule finish on both LC connectors. Network technicians and low-voltage installers use this type of cable to connect active equipment in data centers, enterprise networks, and telecommunications rooms.

This patch cable is suited for indoor multimode fiber runs where OM4 performance is required. The duplex LC connector format is the standard for most SFP and SFP+ ports on switches, routers, and media converters. The LSZH jacket construction meets fire safety requirements common in plenum-adjacent or enclosed-space deployments in commercial and institutional buildings. The 25-meter length addresses longer rack-to-rack or cross-connect runs within a structured cabling environment.

Key Features

• OM4 multimode fiber supports high-bandwidth applications including 10G, 40G, and 100G Ethernet over appropriate distances
• Duplex LC connectors with PC polish for low insertion loss and reliable mating cycles
• 1.6mm LSZH jacket reduces toxic smoke and halogen gas emissions in the event of fire
• 25-meter cable length suits longer intra-facility fiber runs
• 2-fiber construction supports full-duplex transmit and receive on a single cable assembly

Compatibility

Designed as an OEM-style replacement or standard patch cable for OM4 multimode fiber infrastructure using duplex LC-terminated equipment ports.

Installation Notes

Installation is performed by low-voltage technicians or network cabling professionals. Always inspect ferrule end-faces with a fiber inspection scope before mating to avoid contamination-related signal loss. Do not exceed the minimum bend radius of the cable during routing, and avoid sharp bends or pinch points in cable management trays. Installations in commercial buildings should conform to applicable local fire and building codes governing LSZH or plenum-rated cabling materials.
