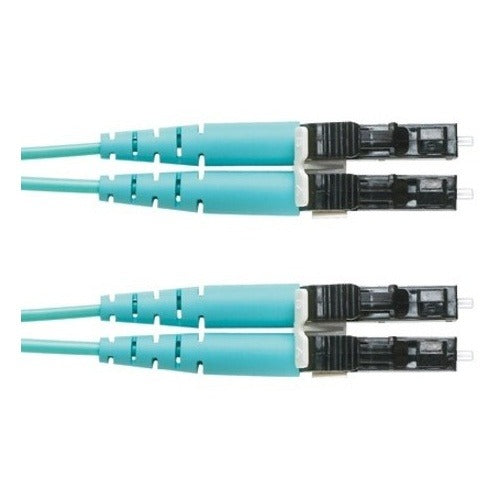

Panduit FZ2ELLNLNSNM016 OM4 Duplex Lc Fiber Patch Cord

Product Description

The PANDUIT FZ2ELLNLNSNM016 is a 2-fiber OM4 duplex fiber optic patch cord designed for high-density structured cabling environments. Built with a 1.6mm zipcord jacket rated LSZH (Low Smoke Zero Halogen), this cord terminates with duplex LC connectors on both ends using a physical contact (PC) polish. OM4 multimode fiber supports high-bandwidth applications at extended distances, making this patch cord suitable for data center interconnects, backbone runs, and equipment connections where fire safety compliance requires low-smoke, halogen-free materials.

This patch cord is used in commercial and enterprise network installations, data centers, and telecommunications rooms. The LC duplex form factor is common in high-density patch panels and active equipment ports including switches, routers, and transceivers. LSZH jacket compliance makes this cord appropriate for installations in plenum-adjacent or enclosed spaces where local codes restrict halogen-containing materials. Licensed low-voltage technicians and structured cabling installers are the typical end users for this product.

Key Features

• OM4 multimode fiber supports 40G and 100G applications at rated distances
• 1.6mm LSZH duplex zipcord jacket meets low smoke zero halogen requirements
• LC to LC duplex configuration compatible with high-density panels and SFP ports
• Physical contact (PC) polish on both connectors reduces back-reflection and insertion loss
• 2-fiber construction supports full-duplex transmit and receive in a single assembly

Compatibility

Designed as an OEM-style replacement or standard patch cord for use with LC duplex-equipped fiber patch panels, switches, and transceivers in OM4 multimode structured cabling systems.

Installation Notes

Installation should be performed by a qualified low-voltage or structured cabling technician following TIA-568 standards. Inspect connector ferrules for contamination before mating and clean per manufacturer guidelines using appropriate fiber cleaning tools. Avoid bending the cord below its minimum bend radius during routing. Power down or disable active ports before connecting or disconnecting fiber assemblies when working near sensitive optical equipment.
