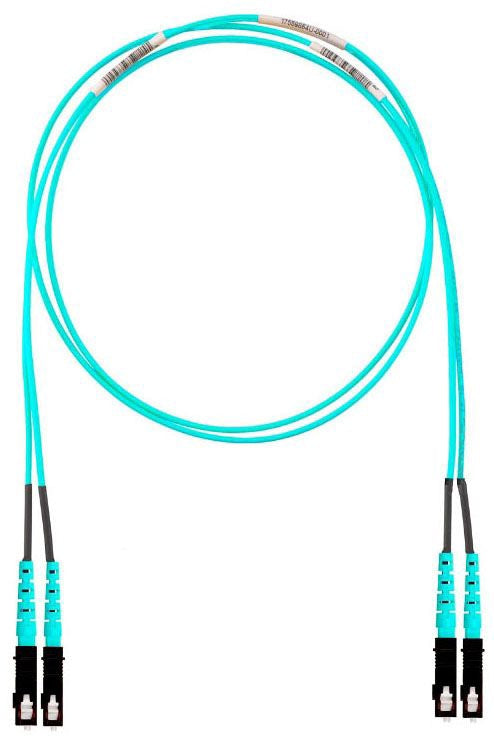

Panduit fz23rsnsnsnm029 OM4 2-fiber Patch Cord Riser

Product Description

The PANDUIT fz23rsnsnsnm029 is an OM4 multimode fiber optic patch cord built with a 2-fiber configuration and a 3mm riser-rated jacket. Designed for structured cabling installations, this patch cord carries high-bandwidth optical signals between active equipment, patch panels, and fiber distribution units. The riser jacket rating makes it suitable for vertical runs between floors in commercial buildings where plenum-grade cable is not required. Licensed low-voltage or data cabling technicians typically handle installation in enterprise, data center, and campus network environments.

This patch cord is used in horizontal and backbone cabling segments that require OM4-grade multimode performance. Common installation scenarios include switch-to-patch-panel connections, cross-connects in main distribution areas, and equipment room fiber links. The 3mm duplex jacket provides added durability for installations subject to moderate handling or repeated move-add-change work. It is well suited for 10G, 40G, and 100G short-reach optical links supported by OM4 multimode fiber.

Key Features

• OM4 multimode fiber supports high-bandwidth 10G, 40G, and 100G short-reach applications
• 2-fiber duplex configuration for bidirectional transceiver connections
• 3mm riser-rated jacket meets OFNR requirements for vertical building runs
• Factory-terminated and tested for consistent end-face quality and low insertion loss
• Compatible with standard OM4 multimode infrastructure and optical transceivers

Compatibility

Designed as an OEM-style replacement and standard-fit patch cord for OM4 multimode fiber optic cabling infrastructure in riser-rated commercial and enterprise installations.

Installation Notes

Installation should be performed by a qualified low-voltage cabling technician following TIA-568 structured cabling standards. Inspect connector end-faces with a fiber inspection scope before mating, and clean with appropriate fiber cleaning tools if contamination is present. Do not exceed the minimum bend radius of the cable during routing, and avoid sharp kinks or heavy tie wraps that can stress the fiber. Power down or disable optical transmitters at the connected port before handling connector end-faces.

Technical Specifications

• Fiber Type: OM4 Multimode
• Fiber Count: 2-Fiber (Duplex)
• Jacket Diameter: 3mm
• Jacket Rating: Riser (OFNR)
• UPC: 074983820689

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: fz23rsnsnsnm029
