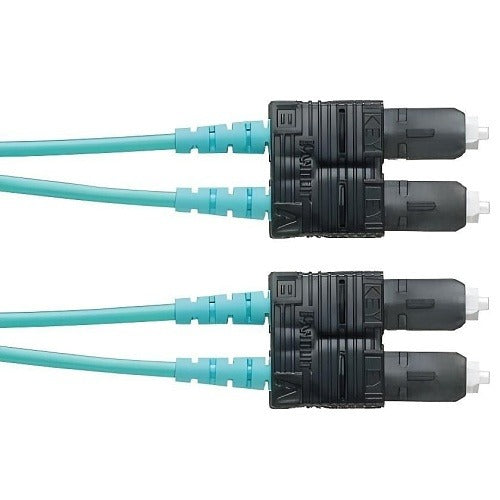

Panduit FZ23LSNSNSNM015 OM4 Duplex Sc Fiber Patch Cable

Product Description

The PANDUIT FZ23LSNSNSNM015 is an OM4 multimode duplex fiber optic patch cable designed for high-density structured cabling environments. This 2-fiber assembly features a 3mm round LSZH (Low Smoke Zero Halogen) jacket, SC duplex connectors on both ends, and a physical contact (PC) polish on each ferrule. At 15 meters in length, it suits backbone and equipment-room runs where low-latency, high-bandwidth connectivity is required. Licensed electricians, low-voltage technicians, and structured cabling installers typically work with this type of assembly in data center and enterprise network applications.

This patch cable is suited for use in OM4 multimode fiber infrastructures supporting 10G, 40G, and 100G Ethernet applications. The LSZH jacket formulation makes it appropriate for use in plenum-adjacent or enclosed spaces where smoke and halogen emissions are a code concern, such as European installations or projects specifying low-emission cable materials. SC duplex connectors are commonly found in telecommunications rooms, campus backbone links, and equipment patching panels.

Key Features

• OM4 multimode fiber supports high-bandwidth applications including 10G and 40G Ethernet
• Duplex SC connectors on both ends for standard SC-to-SC patching
• Physical contact (PC) ferrule polish reduces back reflection at each connection point
• 3mm LSZH jacket rated for environments with low smoke and zero halogen requirements
• 2-fiber construction in a single round cable assembly
• 15-meter length suits equipment room and intermediate distribution frame runs

Compatibility

Designed for use with OM4 multimode fiber optic infrastructure utilizing SC duplex port interfaces, including patch panels, transceivers, and active equipment with SC-type receptacles.

Installation Notes

Installation should be performed by a qualified low-voltage technician or structured cabling installer following TIA-568 and applicable local codes. Do not exceed the minimum bend radius of the cable during routing, as exceeding this will degrade optical performance. Clean all SC ferrules with an appropriate fiber cleaning tool before mating to prevent contamination-related signal loss. Power down active equipment or use appropriate safety precautions before handling live fiber ports to avoid exposure to infrared light emissions.
