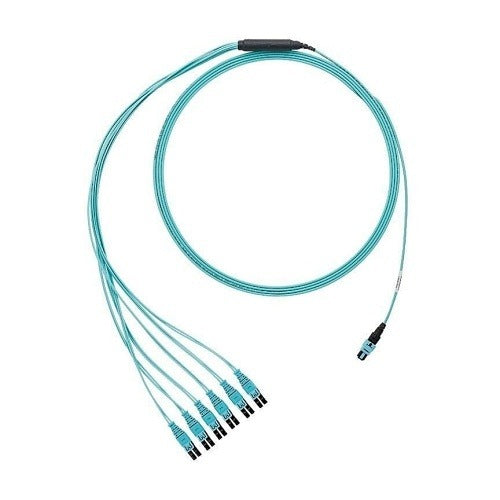

Panduit FXTRP8NQSONF019 OM3 12-fiber Mpo Harness

Product Description

The PANDUIT FXTRP8NQSONF019 is a 12-fiber OM3 multimode MPO harness cable rated for OFNP (plenum) environments. It features a multi-fiber push-on (MPO) trunk connector on one end that breaks out into individual fiber connections on the other, enabling high-density optical patching in structured cabling systems. The plenum-rated jacket meets OFNP flame and smoke requirements for installation in air-handling spaces. This type of assembly is installed by licensed low-voltage and data cabling technicians in enterprise and data center environments.

This harness cable is suited for high-density fiber distribution in data centers, telecommunications rooms, and enterprise network infrastructure. The OM3 multimode fiber designation supports high-bandwidth applications including 10G, 40G, and 100G Ethernet over appropriate link distances. The OFNP plenum jacket rating makes it appropriate for runs through air-handling ceiling plenums and raised-floor environments where fire code requires plenum-rated cabling. The MPO interface aligns with high-density patch panel and transceiver module deployments common in modern structured cabling architectures.

Key Features

• OM3 multimode fiber supports high-bandwidth 10G, 40G, and 100G Ethernet applications
• 12-fiber MPO connector enables high-density trunk-to-breakout patching in a single assembly
• OFNP plenum-rated jacket meets fire and smoke requirements for air-handling space installation
• Factory-terminated harness assembly reduces field termination labor and error
• Single unit quantity for flexible deployment in incremental or retrofit builds

Compatibility

Designed as an OEM-style replacement and standard harness assembly for use with MPO-based high-density fiber patching systems in OM3 multimode structured cabling infrastructures.

Installation Notes

Installation should be performed by a qualified low-voltage cabling technician familiar with fiber optic handling and structured cabling standards such as ANSI/TIA-568. Before installation, ensure all connected equipment ports are powered down or transceivers are removed to prevent optical hazard. Avoid exceeding the minimum bend radius of the cable during routing and do not cinch cable ties tightly against the fiber jacket. Inspect MPO connectors for contamination and clean with appropriate fiber optic cleaning tools before mating.
