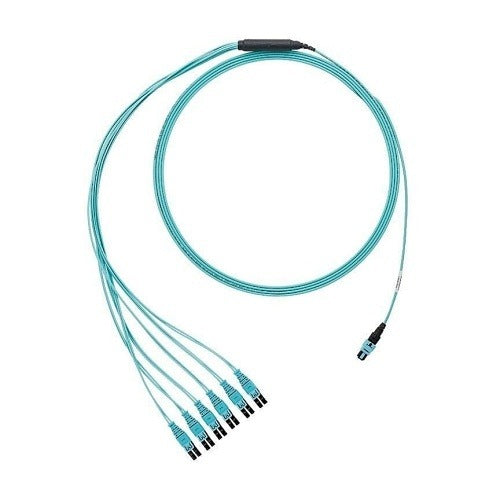

Panduit FXTRP8NQSONF009 OM3 12-fiber Mpo Harness Cable

Product Description

The PANDUIT FXTRP8NQSONF009 is a 12-fiber OM3 multimode trunk harness cable assembly designed for high-density structured cabling installations. It features a PanMPO multi-fiber push-on connector interface and is rated OFNP for plenum-space deployment, making it suitable for air-handling areas where low-smoke, flame-retardant cabling is required by code. This assembly is used to break out a multi-fiber MPO backbone into individual or grouped fiber paths, supporting 10G, 40G, and 100G network applications. Installation is typically performed by licensed low-voltage cabling technicians and data center structured cabling crews.

This harness assembly is well suited for data centers, enterprise network closets, and campus backbone runs where high-fiber-count MPO connectivity is required. The OFNP plenum rating supports runs through air-handling plenums without the need for conduit in many jurisdictions. The OM3 laser-optimized 50-micron multimode fiber supports high-bandwidth short-reach transmission across switches, patch panels, and active equipment ports.

Key Features

• OM3 50-micron laser-optimized multimode fiber for 10G, 40G, and 100G applications
• 12-fiber count in a single MPO trunk harness configuration
• PanMPO multi-fiber push-on connector for tool-free, push-pull mating
• OFNP plenum-rated jacket for installation in air-handling spaces per NEC Article 770
• Factory-terminated and tested assembly for consistent insertion loss performance

Compatibility

Designed as an OEM-style trunk harness for use with MPO-based fiber distribution systems and high-density patch panel infrastructures supporting OM3 multimode cabling.

Installation Notes

Installation should be performed by a qualified low-voltage cabling technician familiar with structured fiber cabling practices. Verify that all active equipment and patch panels are powered down or fiber ports are covered before mating or de-mating MPO connectors to prevent eye-safety hazards from live laser sources. Follow NEC Article 770 requirements for plenum-rated fiber cable routing in air-handling spaces. Avoid exceeding the minimum bend radius of the cable during routing and securing.
