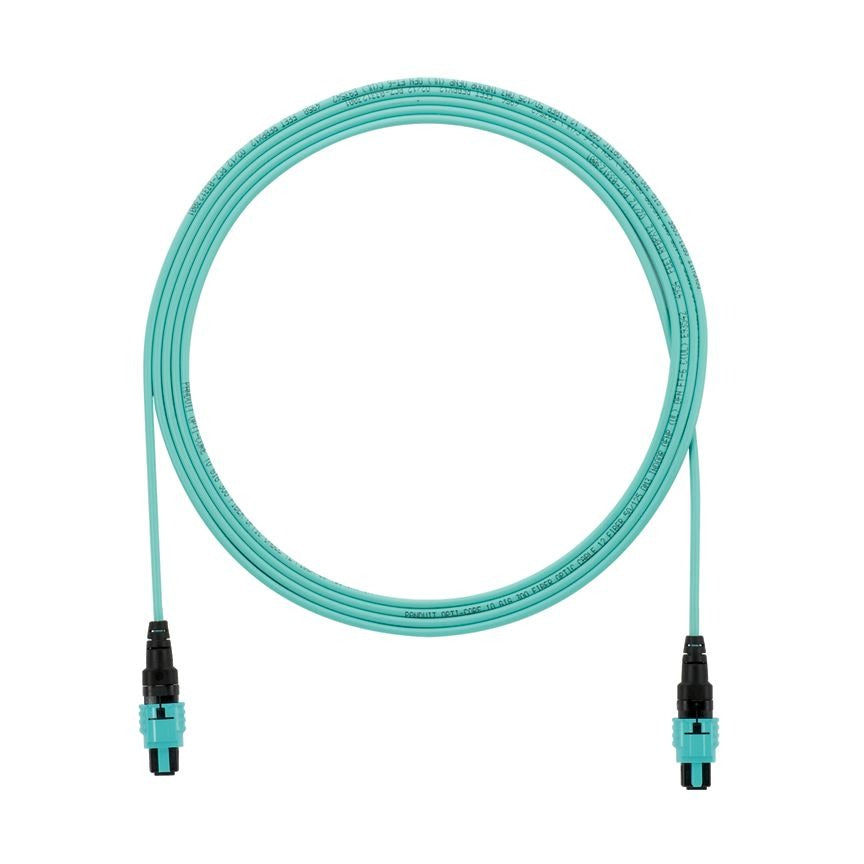

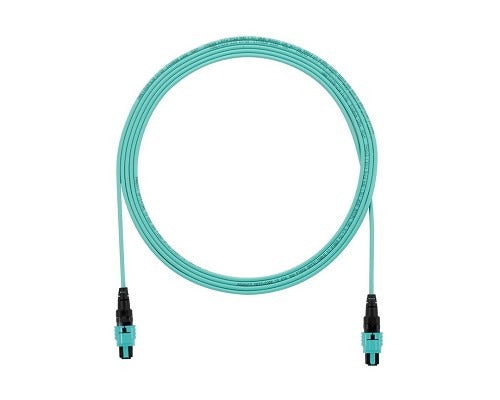

Panduit FXTRP7N7NBNM001 Fiber Trunk 12-F OM3 Interconnect PanMPO Female to PanMPO Female 1 m

Product Description

Panduit FXTRP7N7NBNM001 is a 12-fiber OM3 multimode plenum-rated fiber trunk cable assembly with PanMPO female to PanMPO female connectors and a 1 m length. The assembly is polarity B standard insertion loss and is intended for high-density interconnect and trunking applications, including use with pre-terminated cassettes in main and horizontal distribution areas. It meets industry fiber cabling standards for multimode installations.

• Pre-terminated 12-fiber OM3 multimode trunk with PanMPO(F) to PanMPO(F) connectors
• Plenum-rated (OFNP) construction, 1 m (3.28 ft) length, 50/125 µm fiber
• Polarity B standard insertion loss; maximum connector insertion loss 0.5 dB, minimum return loss 26 dB

Product Highlights

Pre-terminated OM3 12-fiber plenum trunk with PanMPO female connectors, polarity B, 1 m length.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: FXTRP7N7NBNM001
