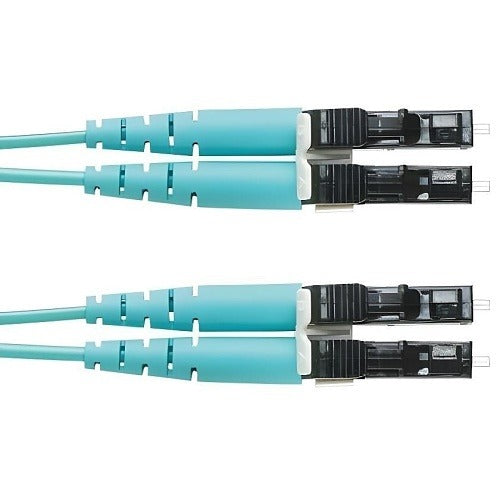

Panduit FX2ELLNLNSNM026 OM3 Duplex Lc Fiber Patch Cable

Product Description

The PANDUIT FX2ELLNLNSNM026 is a 2-fiber OM3 multimode duplex fiber optic patch cable terminated with LC connectors on both ends. Built with a 1.6mm low-smoke zero-halogen (LSZH) jacket, this cable is engineered for structured cabling installations where fire safety ratings and clean signal transmission are critical. The PC (physical contact) polished ferrules minimize back-reflection and insertion loss. Network technicians and low-voltage cabling contractors install this type of cable in data centers, telecommunications rooms, and enterprise LAN backbone runs where OM3 multimode performance is required.

This patch cable is suited for horizontal and backbone fiber runs in commercial and enterprise environments. OM3 multimode fiber supports high-bandwidth applications including 10 Gigabit Ethernet over appropriate distances. The LSZH jacket makes it a preferred choice for plenum-adjacent or enclosed spaces where halogen-free materials are specified by local fire or building codes. It ships as a single unit and is ready to install without additional field termination.

Key Features

• OM3 multimode fiber for 10GbE and high-bandwidth network applications
• Duplex LC connectors with PC-polished ferrules for low insertion loss
• 1.6mm LSZH jacket rated for low-smoke, halogen-free installations
• 2-fiber configuration for duplex transceiver connections
• Factory-terminated and test-ready — no field polishing required

Compatibility

Designed as an OEM-style replacement or standard-use duplex LC OM3 fiber patch cable compatible with LC-port fiber switches, transceivers, and patch panels supporting OM3 multimode fiber.

Installation Notes

Installation is typically performed by licensed low-voltage or network cabling technicians. Power down or place active ports in a safe state before disconnecting live fiber links to avoid disrupting network traffic. Handle LC connectors carefully and keep dust caps in place until the moment of connection to protect polished ferrule end-faces. Follow TIA-568 and applicable local building codes when routing LSZH-jacketed cable through conduit or cable management systems.
