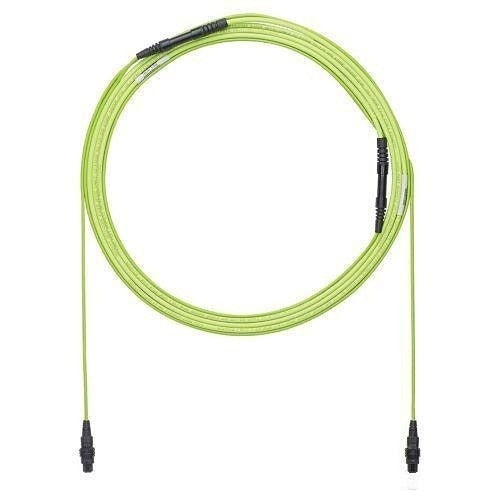

Panduit FWTYL7575KAM058 OM5 12-fiber Trunk Cable

Product Description

The PANDUIT FWTYL7575KAM058 is an OM5 wideband multimode fiber optic trunk cable designed for high-density structured cabling installations. Featuring a 12-fiber count with a Low Smoke Zero Halogen (LSZH) jacket, this trunk cable supports aggregated parallel optics applications and high-speed data center interconnects. The LSZH construction limits toxic gas and smoke emission in the event of fire, making it a code-appropriate choice for plenum-adjacent or enclosed pathways where halogen-free materials are specified. Licensed cabling technicians and data center infrastructure professionals are the primary installers of this product.

This trunk cable is suited for backbone and zone distribution runs in enterprise and data center environments. The OM5 fiber designation supports wideband multimode transmission, enabling operation across multiple wavelengths for use with short-wavelength division multiplexing (SWDM) and parallel optic transceiver technology. Typical applications include main distribution area to horizontal distribution area runs, top-of-rack to end-of-row connections, and high-density patch panel trunk deployments. The 12-fiber count accommodates standard MPO or MTP-style connector configurations used in structured fiber backbone systems.

Key Features

• OM5 wideband multimode fiber supports SWDM and parallel optic applications
• 12-fiber count suits standard MPO/MTP backbone trunk configurations
• LSZH jacket reduces toxic smoke and halogen gas emission during fire events
• Designed for high-density structured cabling and data center environments
• Sold as individual unit (each)

Compatibility

Designed as an OEM-style trunk cable for use with OM5 multimode fiber infrastructure, compatible with MPO and MTP-style connectivity systems in high-density structured cabling deployments.

Installation Notes

Installation should be performed by a qualified low-voltage cabling technician or registered communications distribution designer (RCDD) familiar with TIA-568 structured cabling standards. De-energize and power down all connected active equipment before making fiber connections. Observe minimum bend radius requirements during routing to avoid fiber damage. LSZH cables must be installed in accordance with local building and fire codes governing halogen-free cable use.
