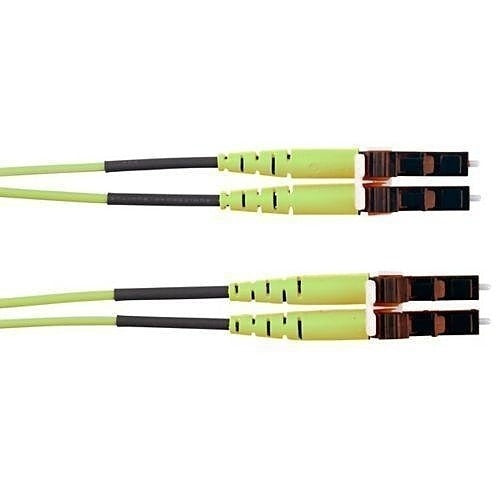

Panduit FW2ERLNLNSNM025 OM5 Duplex Fiber Patch Cable

Product Description

The PANDUIT FW2ERLNLNSNM025 is an OM5 wideband multimode duplex fiber optic patch cable designed for high-density structured cabling installations. Built with a 1.6mm diameter duplex jacket and LC to LC connectors on both ends, this cable supports high-speed data transmission in modern data center and enterprise network environments. The OFNR (Optical Fiber Nonconductive Riser) rating makes it compliant for riser-rated pathway installations. Network installers and low-voltage technicians use this cable to connect active equipment such as switches, transceivers, and media converters.

This patch cable is suited for OM5 wideband multimode fiber applications, including shortwave division multiplexing (SWDM) and high-density data center interconnects. The 25-meter length covers longer intra-rack and inter-rack runs where standard short-length patch cords fall short. The duplex LC configuration is a standard interface for SFP and SFP+ transceivers commonly found in enterprise switching and storage environments. It is typically installed by licensed low-voltage contractors or network infrastructure technicians working in commercial and enterprise facilities.

Key Features

• OM5 wideband multimode fiber construction supports SWDM4 and multi-gigabit transmission
• Duplex LC to LC connectors compatible with SFP and SFP+ port interfaces
• 1.6mm duplex jacket for flexible routing in high-density cable management environments
• OFNR riser rating meets fire and smoke propagation requirements for riser pathways
• 25-meter length accommodates longer cross-connect and inter-rack runs
• 2-fiber configuration supports full-duplex transmit and receive operation

Compatibility

Designed as an OEM-style patch cable for use with LC-interface SFP and SFP+ transceivers in OM5 wideband multimode fiber cabling systems installed in riser-rated pathways.

Installation Notes

Installation should be performed by a qualified low-voltage technician or network cabling installer familiar with structured cabling standards such as ANSI/TIA-568. Before connecting or disconnecting fiber patch cables, power down or disable the associated optical transceivers to avoid eye hazard from active laser sources. Keep dust caps on connectors until the moment of installation and inspect ferrule end faces with an appropriate fiber inspection scope before mating. Avoid bending the cable below its minimum bend radius during routing and cable management.
