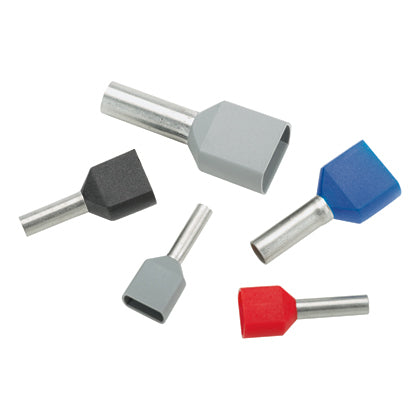

Panduit FTD8112C Pan-Term FTD Twin Wire Ferrule 12 AWG (100 Pack)

Product Description

Panduit FTD8112C is a covered twin wire ferrule designed for reliable electrical connections. This product is ideal for terminating stranded wire into terminal blocks. The ferrule features a seamless barrel and offers a secure grip on stranded conductors, making it suitable for various wiring applications.

• Compatible with 12 AWG stranded conductors
• Made from copper with polypropylene insulation
• Meets standard regulations DIN 46228, CSA C22.2 No. 291-14, and UL 486F

Product Highlights

This ferrule is designed for wire applications that require secure and reliable connections, particularly in areas with limited space. The encapsulated crimp helps eliminate loose wire strands and ensures a strong termination.

Product Information

Standard Information

• Catalog Number: FTD81-12-C
• Manufacturer: Panduit

Technical Specifications

• Material: Copper
• Insulation: Polypropylene
• Barrel Size: 0.34 inches OD x 0.91 inches L
• Color: Gray
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Wire Size: 12 AWG
• Finish: Tin-Plated
• Mounting Hole Size: 21/32 inches
