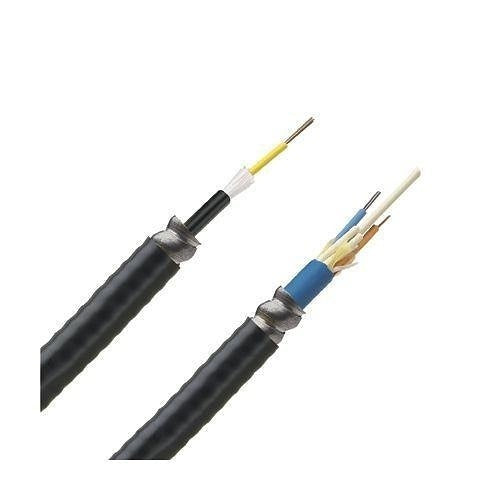

Panduit FSGR606Y 62.5um OM1 6-fiber Indoor-outdoor Cable

Product Description

The PANDUIT FSGR606Y is a 62.5-micron OM1 multimode fiber optic cable designed for indoor-outdoor installation. This 6-fiber construction supports multimode optical transmission and is suited for backbone cabling runs that transition between interior and exterior environments without requiring a separate splice point or transition enclosure. Licensed low-voltage contractors and structured cabling technicians are the primary installers. The OM1 multimode specification supports legacy 62.5-micron fiber infrastructure, making it a direct fit for existing multimode networks.

This cable is used in commercial and light industrial settings where a fiber run must pass from inside a building to an outdoor pathway or enter from an outside plant route into a building interior. Typical applications include inter-building backbone links, campus distribution runs, and riser-to-outside-plant transitions. The indoor-outdoor rating eliminates the need for a transition splice when the cable moves between conditioned and unconditioned environments.

Key Features

• 62.5-micron OM1 multimode fiber core for compatibility with legacy multimode infrastructure
• 6-fiber count construction for moderate-density backbone runs
• Indoor-outdoor rated design eliminates transition splice requirements
• Suitable for both riser and outdoor pathway routing in a single continuous run

Compatibility

Designed as an OEM-style replacement and standard-fit solution for 62.5-micron OM1 multimode fiber optic cabling systems in commercial structured cabling installations.

Installation Notes

Installation should be performed by a licensed low-voltage or structured cabling contractor familiar with TIA-568 and applicable local codes. De-energize and lock out any active equipment connected to the fiber pathway before beginning termination work. Use proper fiber stripping and cleaving tools rated for 62.5-micron multimode fiber. Do not exceed the cable minimum bend radius during pulling or routing, as exceeding it can permanently increase insertion loss.
