Panduit FSD85-16-L Pan-Term FSD DIN End Sleeve Single Insulated Wire Ferrule 4 AWG

Product Description

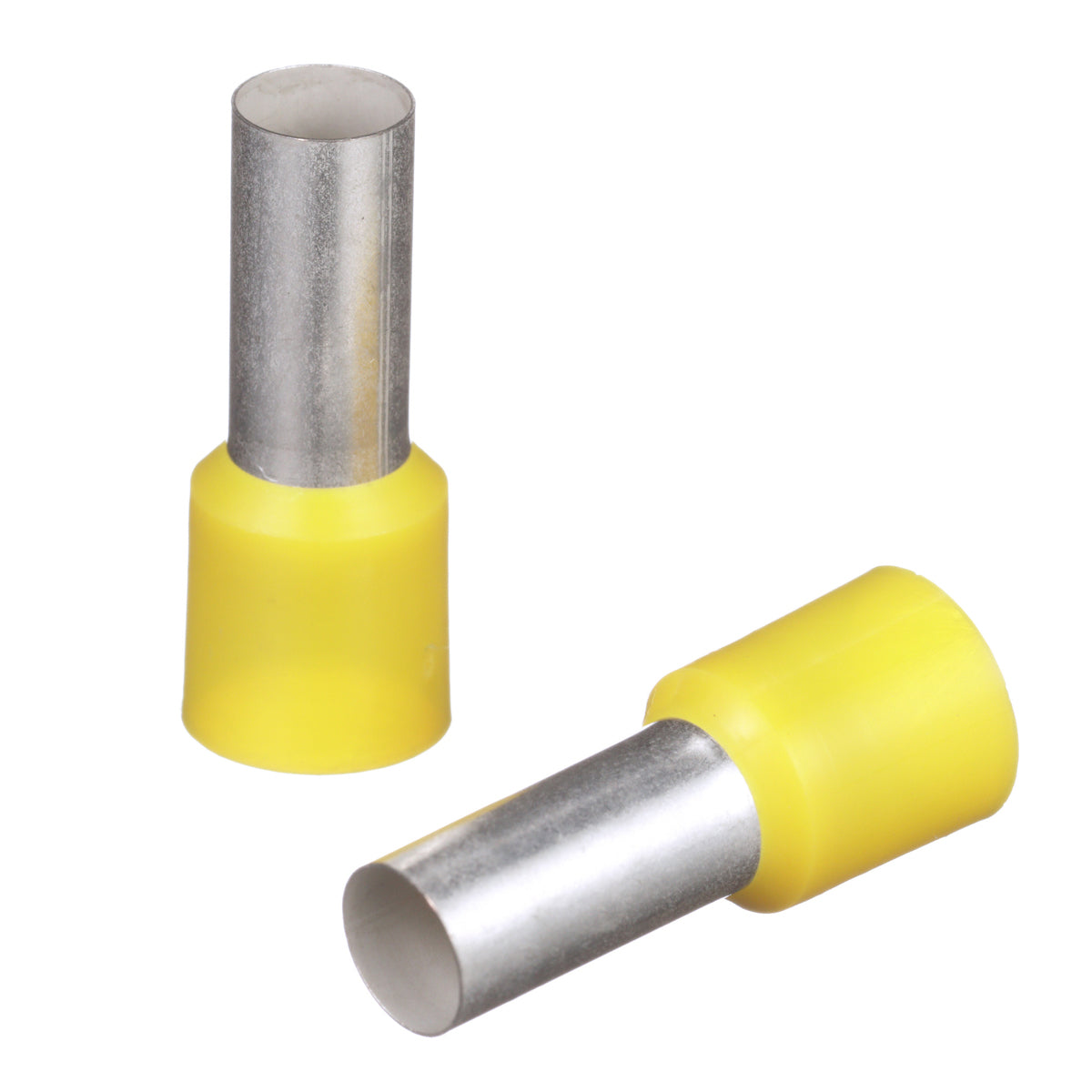

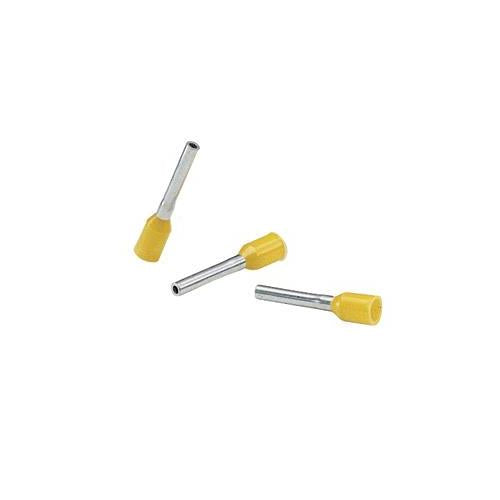

The Panduit FSD85-16-L is a Pan-Term DIN end sleeve insulated wire ferrule designed for 4 AWG stranded conductors. Its streamlined funnel entry allows for quicker wire insertion, improving installation efficiency. This ferrule supports a maximum insulated wire diameter of 0.43 inches and has a length of 1.14 inches.

• Designed for stranded conductors of 4 AWG
• Constructed from copper with polypropylene insulation
• Meets multiple industry standards including DIN 46228

Product Highlights

The Panduit FSD85-16-L wire ferrule provides reliable connections in space-limited environments. Its seamless barrel design ensures that loose wire strands are contained for superior terminations.

Product Information

Standard Information

• Brand: Panduit
• Part Number: FSD85-16-L

Technical Specifications

• Color: Yellow
• Material: Copper
• Insulation: Polypropylene
• Length: 1.14 inches
• Wire Size: 4 AWG
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Finish: Tin-Plated
• Standards: DIN 46228, CSA C22.2 No. 291-14, UL 486F
