Panduit FSD84-12-C Ferrule Twn Insul 6AWG 0.91 in Length

Product Description

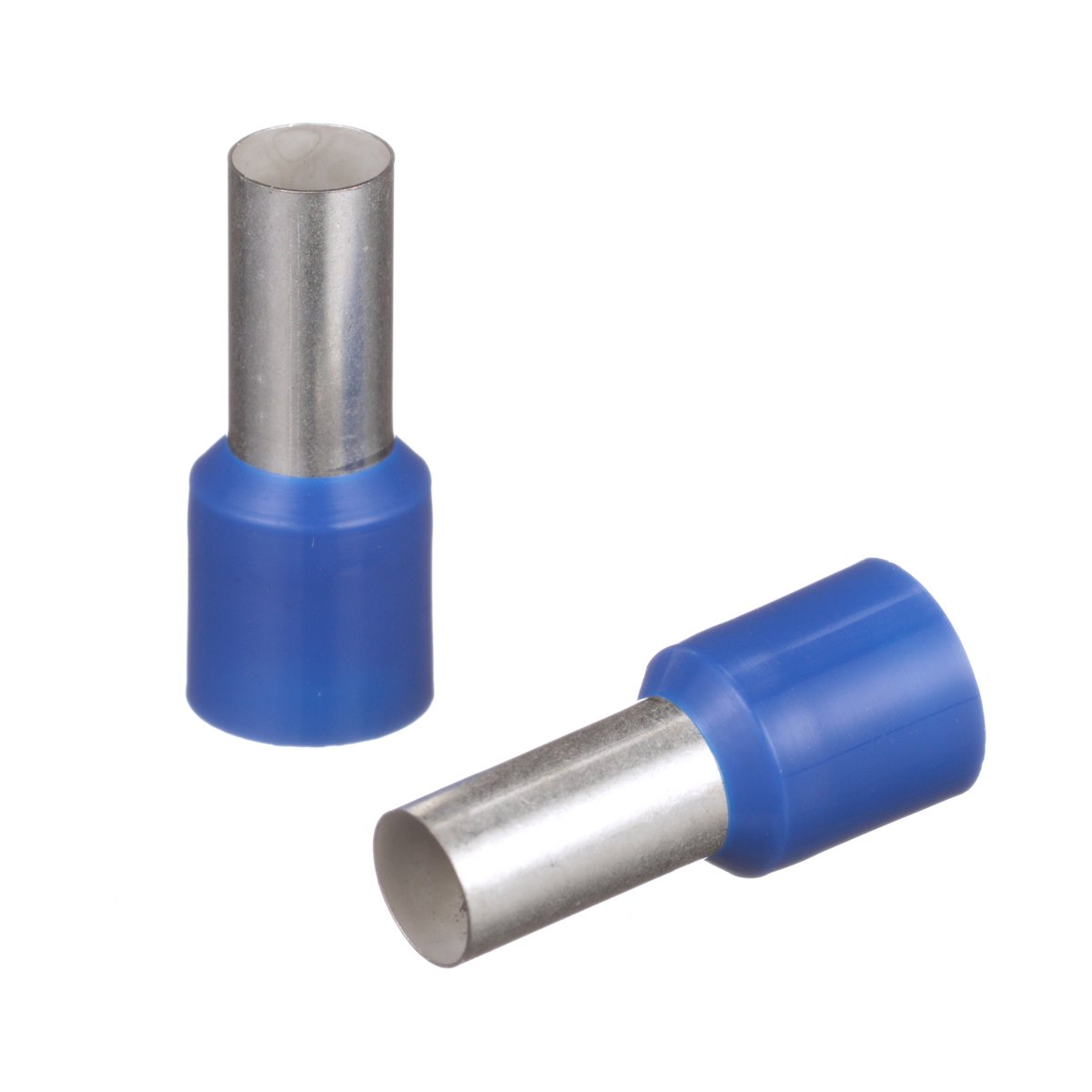

Panduit FSD84-12-C is a single wire DIN end sleeve insulated ferrule in blue. This ferrule is designed for use with American Wire Gauge (AWG) #6 wire. The funnel entry allows for fast wire insertion, which helps to lower installation time and costs. It accommodates a maximum wire insulated diameter of 0.35 inches, making it suitable for various wiring applications. The insulated ferrule is 0.91 inches long and has a wire strip length of 0.625 inches.

• Pack of 100 pieces
• Supports AWG #6 (16.0 mm²) wire
• Constructed with durable materials for reliability

Product Highlights

This product is ideal for applications that require reliable wire connections in tight spaces.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: FSD84-12-C

Technical Specifications

• Type: Type FSD DIN End Sleeve Single Insulated
• Material: Copper
• Color: Blue
• Finish: Tin Plated
• Length: 0.91 inches
• Conductor Size: 6 AWG
• Temperature Rating: 221 degrees Fahrenheit (105 degrees Celsius)
