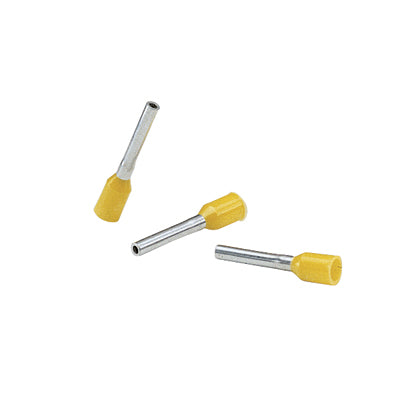

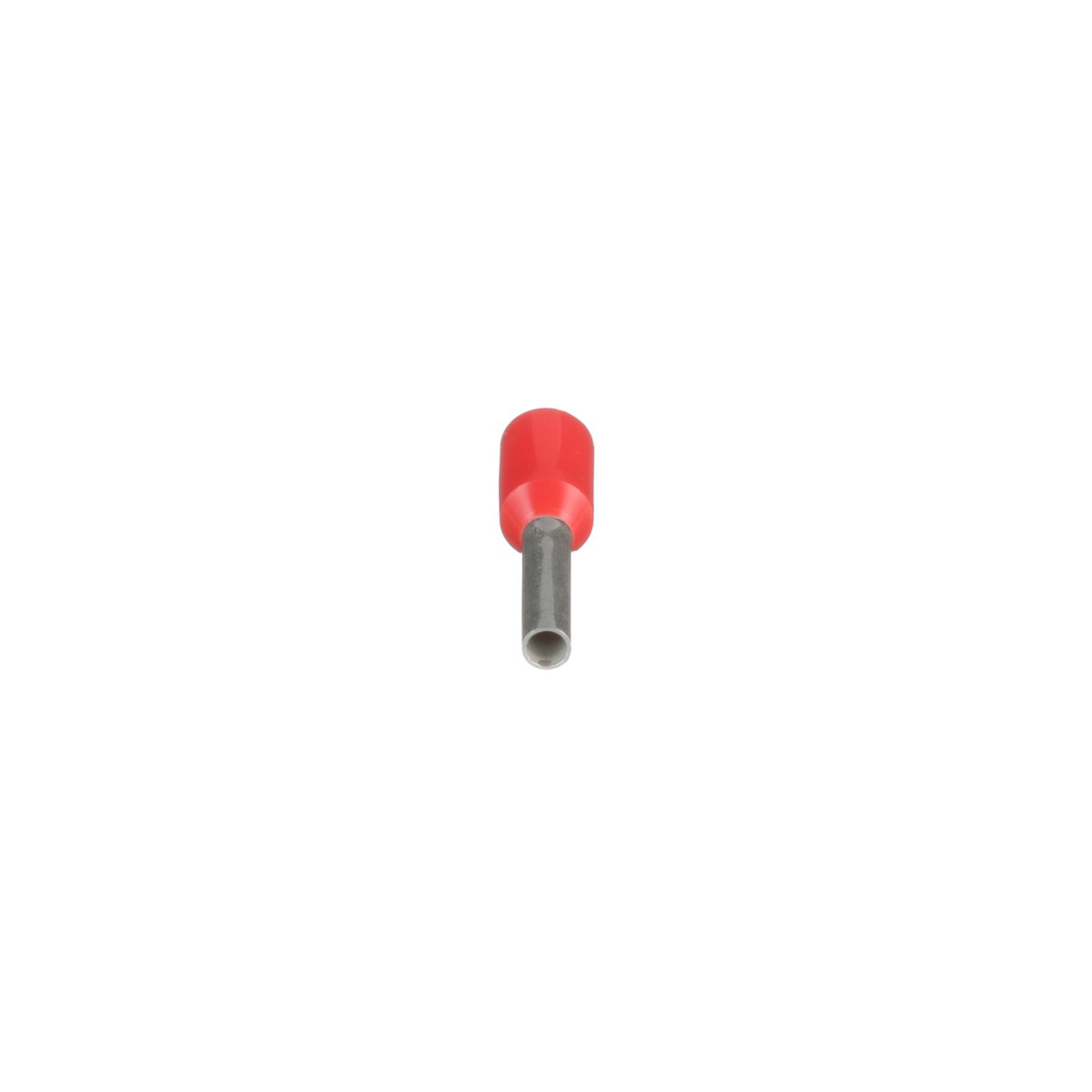

Panduit FSD83-18-C Pan-Term Wire Ferrule 8 AWG PK100

Product Description

The Panduit FSD83-18-C is a type of single wire ferrule designed for use with 8 AWG stranded conductors. This product features a polypropylene insulation and meets several DIN standards. Each ferrule has a seamless barrel structure that effectively contains loose wire strands, ensuring reliable connections. The funnel entry design facilitates easier insertion, saving time during installation.

• Type FSD DIN end sleeve
• Polypropylene insulated for durability
• Specifications: 1.06 inches length

Product Highlights

The FSD83-18-C ensures effective terminations and supports limited space applications with its compact design.

Product Information

Standard Information

• Manufacturer:Panduit
• Country of Origin:Germany

Technical Specifications

• Catalog Number:FSD83-18-C
• Conductor Size:8 AWG
• Insulation:Polypropylene
• Material:Copper
• Temperature Rating:221 Degrees Fahrenheit (105 Degrees Celsius)
• Barrel Size:0.18 inches ID x 0.71 inches length
• Finish:Tin Plated
• Standards:DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F
