Panduit FSD82-12-C Pan-Term Wire Ferrule 10 AWG Replacement MPN

Product Description

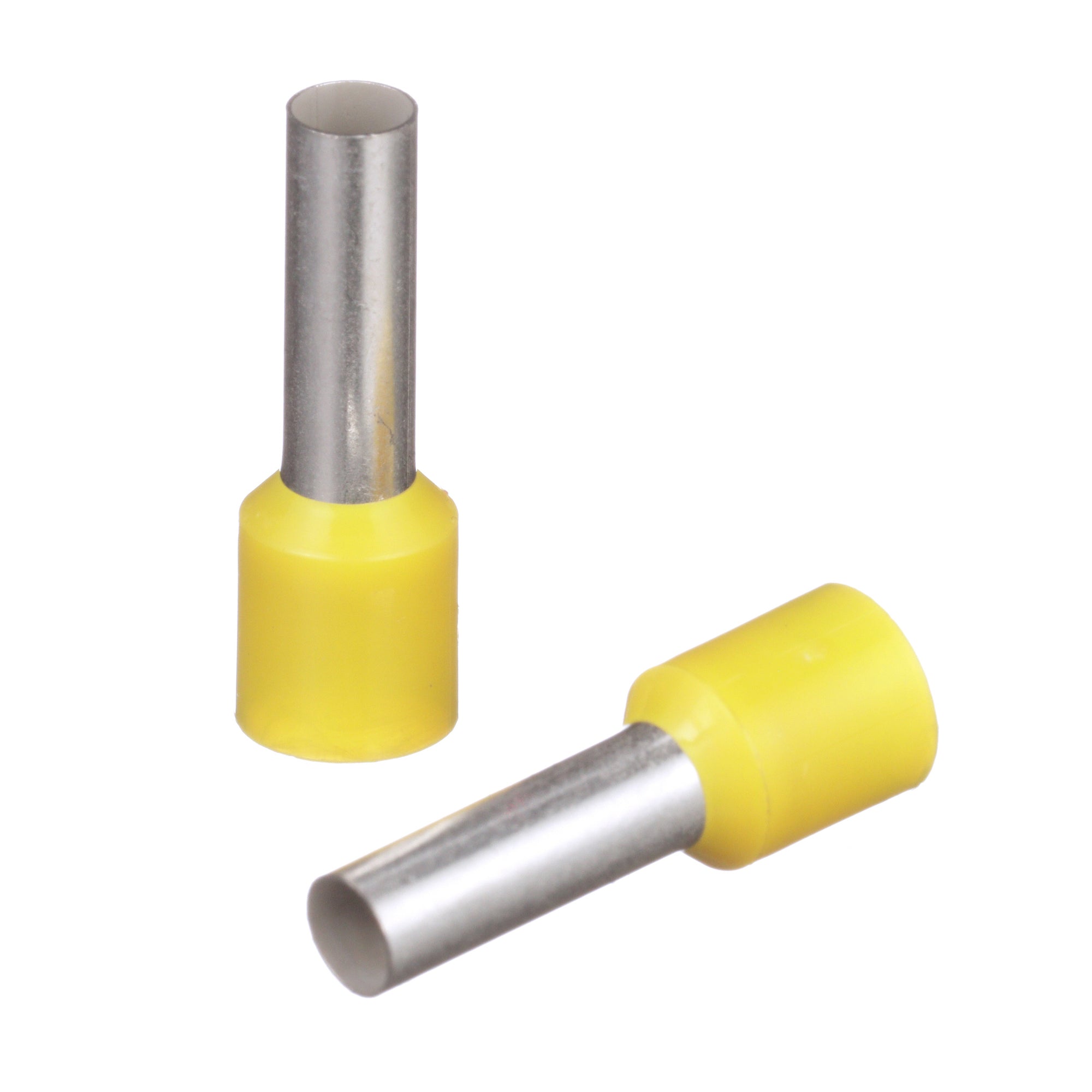

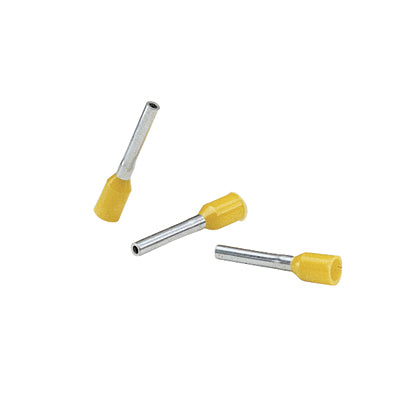

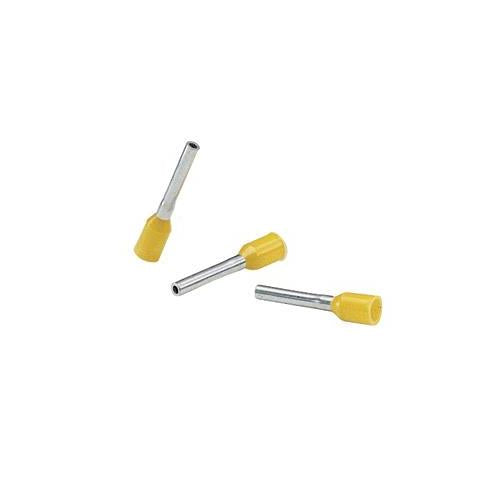

The Panduit FSD82-12-C Pan-Term Ferrule is a single-wire ferrule with a seamless barrel design. This ferrule is made for 10 AWG stranded conductors and has a length of 0.79 inches. It is suitable for limited space panel applications and features a polypropylene insulation housing.

• Seamless barrel for secure wire strand containment
• Funnel entry for faster wire insertion
• Available in yellow to meet DIN color requirements

Product Highlights

Designed to ease insertion into terminal blocks while lowering installation costs.

Product Information

Standard Information

• Manufacturer: Panduit
• Model Number: FSD82-12-C

Technical Specifications

• Type: Covered Single Wire Ferrule
• Conductor Size: 10 AWG
• Material: Copper
• Insulation Type: Polypropylene
• Color: Yellow
• Length: 0.79 inches
• Temperature Rating: 221 degrees Fahrenheit (105 degrees Celsius)
• Standard Compliance: DIN 46228, CSA C22.2 No. 291-14, UL 486F
