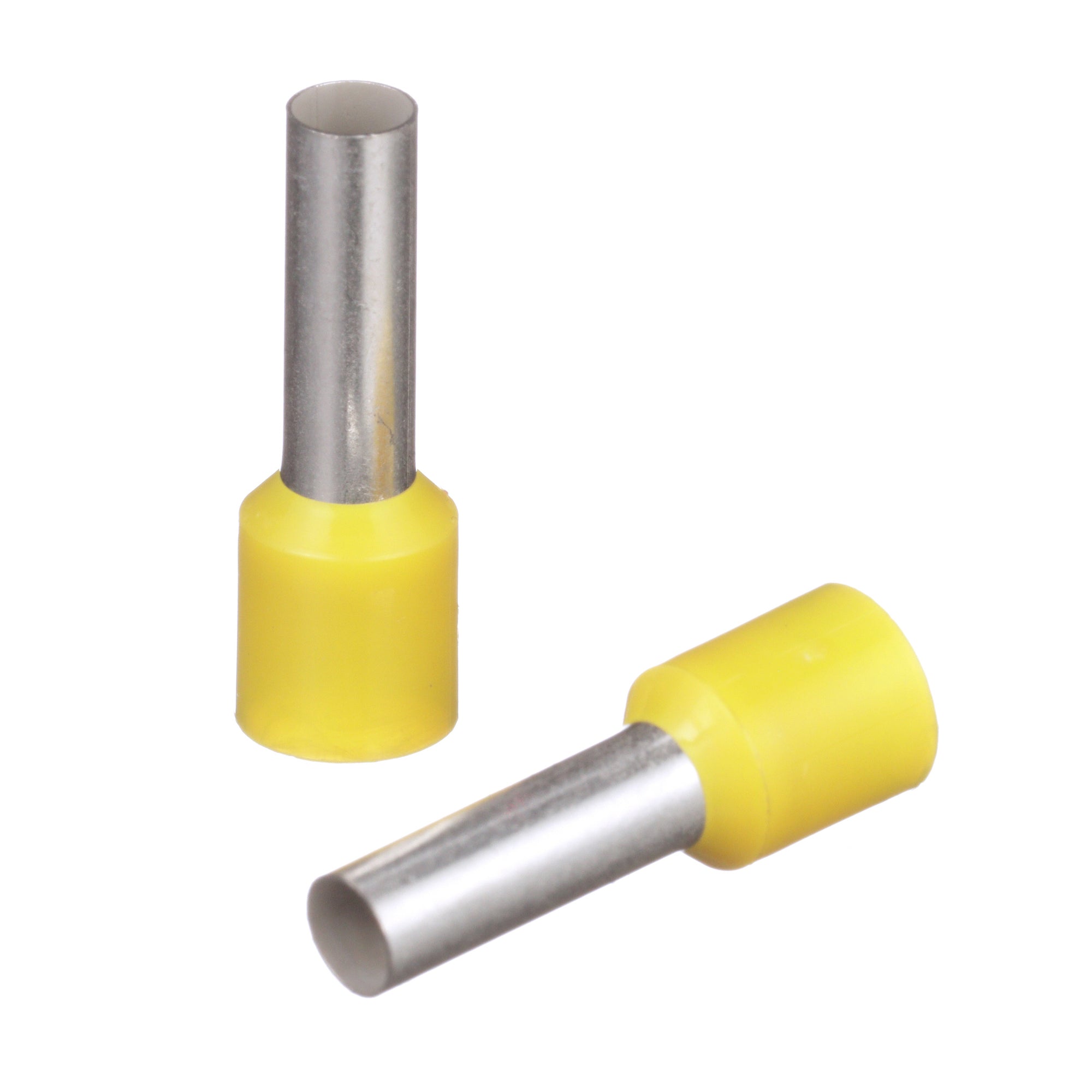

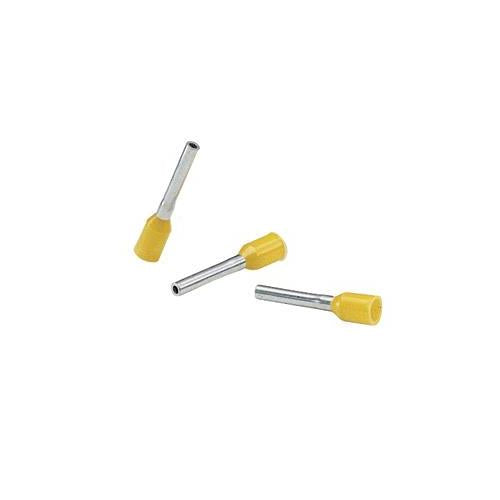

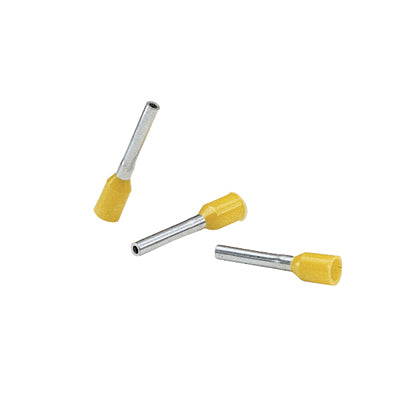

Panduit FSD82-12-C Covered Single Wire Ferrule 10 AWG

Product Description

The Panduit FSD82-12-C is a single-wire ferrule designed for reliable electrical connections. This ferrule has a seamless barrel that contains loose wire strands, allowing for superior terminations. The plastic covering enables faster and easier wire insertion, reducing installation costs and simplifying the process in tight spaces.

• Meets DIN standards for single wire containment.
• Funnel entry for easier wire insertion.
• Available for various terminal block applications.

Product Highlights

This ferrule is suitable for limited space panel applications and features a polypropylene insulation housing.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: FSD82-12-C

Technical Specifications

• Type: Covered Single Wire Ferrule
• Material: Copper
• Color: Yellow
• Barrel Size: 0.11 inches ID x 0.31 inches L
• Conductor Size: 10 AWG
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Standards: DIN 46228, CSA C22.2 No. 291-14, UL 486F
