Panduit FSD78-12-D Ferrule 16 AWG

Product Description

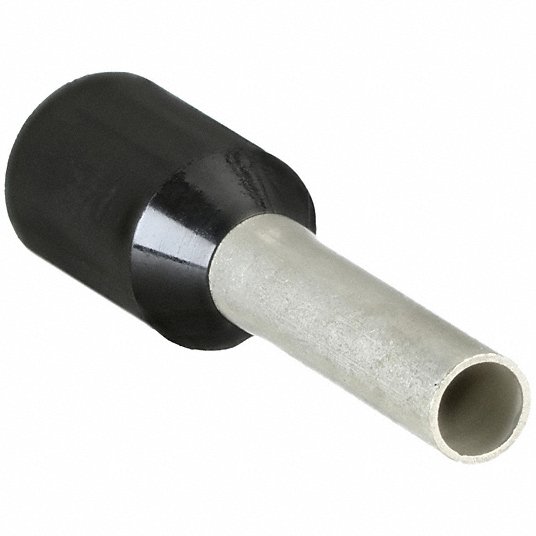

The Panduit FSD78-12-D is a wire ferrule designed for terminating 16 AWG wires. These insulated ferrules have a protective wrap around their barrel that helps prevent wire strands from falling out and protects the connection. It features a funnel entry for faster insertion and a seamless barrel to contain loose wire strands.

• Wire size range of 26AWG to 300kcmil
• Single wire design
• Polypropylene insulation housing that conforms to DIN color requirements

Product Highlights

The FSD78-12-D ferrules meet DIN standards and have colored sleeves for visual color designation of wire size to aid in easy identification.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: FSD78-12-D
• Country of Origin: Germany

Technical Specifications

• Category: Connectors, Interconnects
• Terminal Blocks: Terminal Block Accessories
• Terminal Block Wire Ferrules: Terminal Block Wire Ferrules
• Style: DIN
• Manufacturer: Panduit Corp
• Size: 16 AWG (1.50mm )
• Series: Pan-Term
• Length - Overall: 18.50mm
• Length - Pin: 12.00mm
• Part Status: Active
• Color: Black
• Type: Single Wire
• Base Product Number: FSD78
• Insulation: Insulated
• Brand: Panduit
• Finish: Tin-Plated
• Standard: DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F
• Material: Copper
• Use With: CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CP-991, CTFP-25, CTFP-40, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH)
• Conductor Size: 16 AWG
• Flammability Rating: UL94-HB
• Inner Diameter: 0.07 in.
• Insulation Material: Polypropylene
• Lug Wire Size: 16 AWG
• Color Family: Black
• Length: 0.73 in
• Max. Temperature Rating: 221 F
• MPN: FSD78-12-D
• Insertion Length: 5/8 in
• Maximum Operating Temperature: 221 Degrees F
• Minimum Wire Size: 16 AWG
• Maximum Wire Size: 16 AWG
• Termination Style: Crimp
• Barrel Diameter: 0.12 in
• Barrel Finish: Tin Plated
• Barrel Length: 0.26 in
• Barrel Material: Copper
• Number of Insertable Wires: 1
• Overall Length: 0.73 in
• Special Features: Funnel Entry; Seamless Barrel; Suitable for Limited Space Applications; Type FSD
• Strip Length: 5/8 in
• Minimum Temperature: -60 F
