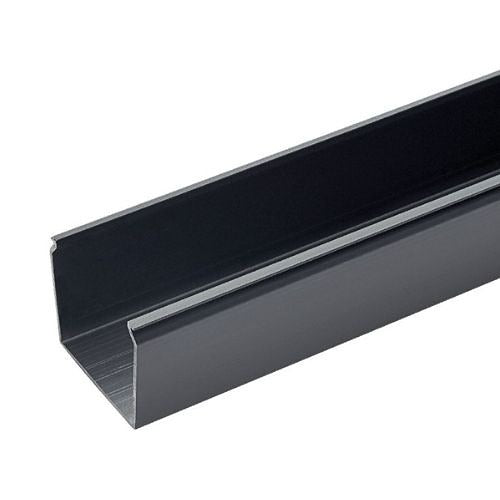

Panduit FS4X4BL6 Pvc Raceway 4x4 in 6 Ft Black

Product Description

The PANDUIT FS4X4BL6 is a PVC surface raceway measuring 4 inches wide by 4 inches tall by 6 feet in length, finished in black. Surface raceways provide a structured pathway for routing electrical conductors, low-voltage cabling, and communication wiring along walls, ceilings, and other surfaces without the need for in-wall installation. The PVC construction resists corrosion, moisture, and common cleaning agents, making it suitable for both dry and damp interior environments. Electricians and low-voltage installers use this raceway where exposed cable management is required and open wiring is not acceptable per code.

This raceway is suited for commercial, institutional, and industrial interior installations where surface-mount wiring management is specified. Typical applications include adding circuits or data runs in existing buildings, wiring in concrete or masonry construction where in-wall routing is impractical, and clean cable organization in server rooms, classrooms, healthcare facilities, and retail spaces. The 4-inch by 4-inch channel provides substantial interior capacity for high-density wire bundles.

Key Features

• 4 inches x 4 inches cross-section for high-capacity wire fill
• 6-foot length simplifies layout and reduces the number of joints per run
• PVC construction resists corrosion, impact, and common chemical exposure
• Black finish suits commercial and industrial aesthetic requirements
• Surface-mount design eliminates the need for structural wall penetration

Compatibility

Designed as an OEM-style surface raceway fitting into standard PVC raceway systems for commercial and residential electrical and low-voltage cable management installations.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with NEC Article 386 governing surface metal and nonmetallic raceways. De-energize all circuits in the work area before pulling conductors through the raceway. Secure the raceway base to the mounting surface at intervals in accordance with the applicable code and manufacturer guidance before snapping the cover into place. Avoid over-filling the channel beyond the rated conductor fill capacity specified by NEC.
