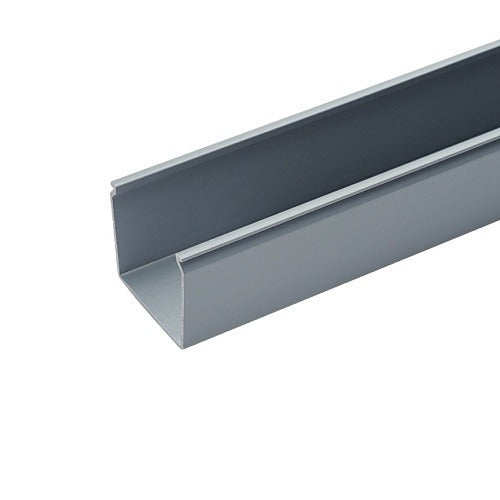

Panduit FS4X3LG6NM Solid Pvc Wire Raceway 4x3

Product Description

The PANDUIT FS4X3LG6NM is a solid PVC wire raceway designed to route and protect electrical conductors in commercial and industrial installations. The raceway measures 4 inches wide by 3 inches deep and is finished in light gray. Constructed from rigid PVC, it provides a durable, low-maintenance channel for organizing cable runs along walls and structural surfaces. Electricians and low-voltage installers use this type of raceway to keep wiring neat, code-compliant, and protected from physical damage in panel rooms, data centers, and general commercial spaces.

This solid raceway is suited for surface-mounted wiring applications in commercial and light industrial environments. It is commonly installed in electrical rooms, server rooms, office build-outs, and similar spaces where organized, accessible conductor routing is required. The 4-inch by 3-inch profile accommodates high cable fill volumes, making it appropriate for runs carrying multiple circuits or communication cables. It ships as a single piece per unit.

Key Features

• Solid PVC construction resists moisture, corrosion, and common chemicals
• 4-inch wide by 3-inch deep channel profile supports high cable fill capacity
• Light gray finish suits standard electrical room and commercial interior aesthetics
• Rigid form maintains raceway shape along wall and surface-mounted runs
• Compatible with standard PVC raceway fittings and accessories

Compatibility

Designed as an OEM-style surface raceway component compatible with standard PVC raceway fitting systems used in commercial electrical and low-voltage wiring installations.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with NEC Article 386 governing surface metal and nonmetallic raceways. De-energize all circuits in the work area before routing conductors into the raceway. Secure the raceway base to the mounting surface at intervals per manufacturer and code requirements before seating the cover. Avoid over-filling the channel beyond the rated conductor fill capacity for the raceway size.
