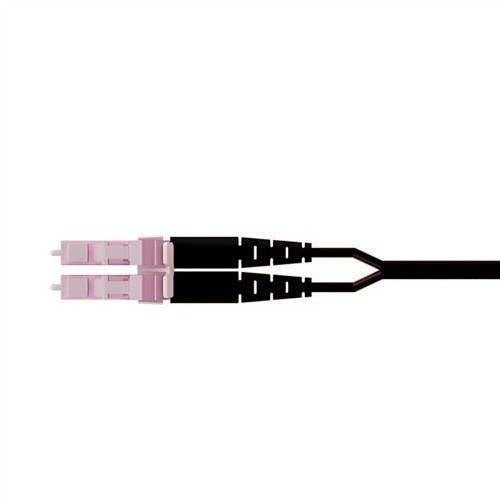

Panduit FS2EPKJLNNJM009 OM4+ 2F Lc Plenum Fiber Patch Cord

Product Description

The PANDUIT FS2EPKJLNNJM009 is a 2-fiber OM4+ fiber optic patch cord designed for high-density, high-bandwidth structured cabling installations. Built with a 1.6mm plenum-rated (OFNP) jacket, it terminates with LC connectors and features a keyed configuration to prevent mismatched port connections. OM4+ multimode fiber supports high-speed data transmission across 10G, 40G, and 100G network applications. This patch cord is suited for data centers, enterprise networks, and any environment requiring plenum-rated cabling for air-handling spaces.

This patch cord is used in commercial and enterprise structured cabling environments where plenum-rated fiber runs are required by code. Typical installations include above-ceiling and air-handling plenum spaces, data center cross-connects, and high-density patch panels. The LC connector format is standard for modern high-density fiber distribution systems. The keyed LC design helps enforce correct port assignments and reduces the risk of incorrect patching during installation and moves-adds-changes.

Key Features

• OM4+ multimode fiber supports 10G, 40G, and 100G transmission rates
• 1.6mm plenum-rated OFNP jacket approved for use in air-handling spaces
• LC connector termination for high-density fiber patch applications
• Keyed connector design prevents incorrect port mating
• 2-fiber construction for duplex data transmission
• Sold individually as a single unit (EA)

Compatibility

Designed as an OEM-style replacement and standard patch cord for OM4+ multimode fiber distribution systems using LC-type ports in plenum-rated structured cabling environments.

Installation Notes

Installation should be performed by a qualified low-voltage cabling technician or network infrastructure specialist familiar with TIA-568 fiber cabling standards. Inspect LC ferrules for contamination before mating and clean with an approved fiber optic cleaning tool. Do not exceed the minimum bend radius of the cable during routing, and avoid sharp bends or kinks in plenum pathways. Verify plenum-rating compliance with local building and fire codes before installing in air-handling spaces.
