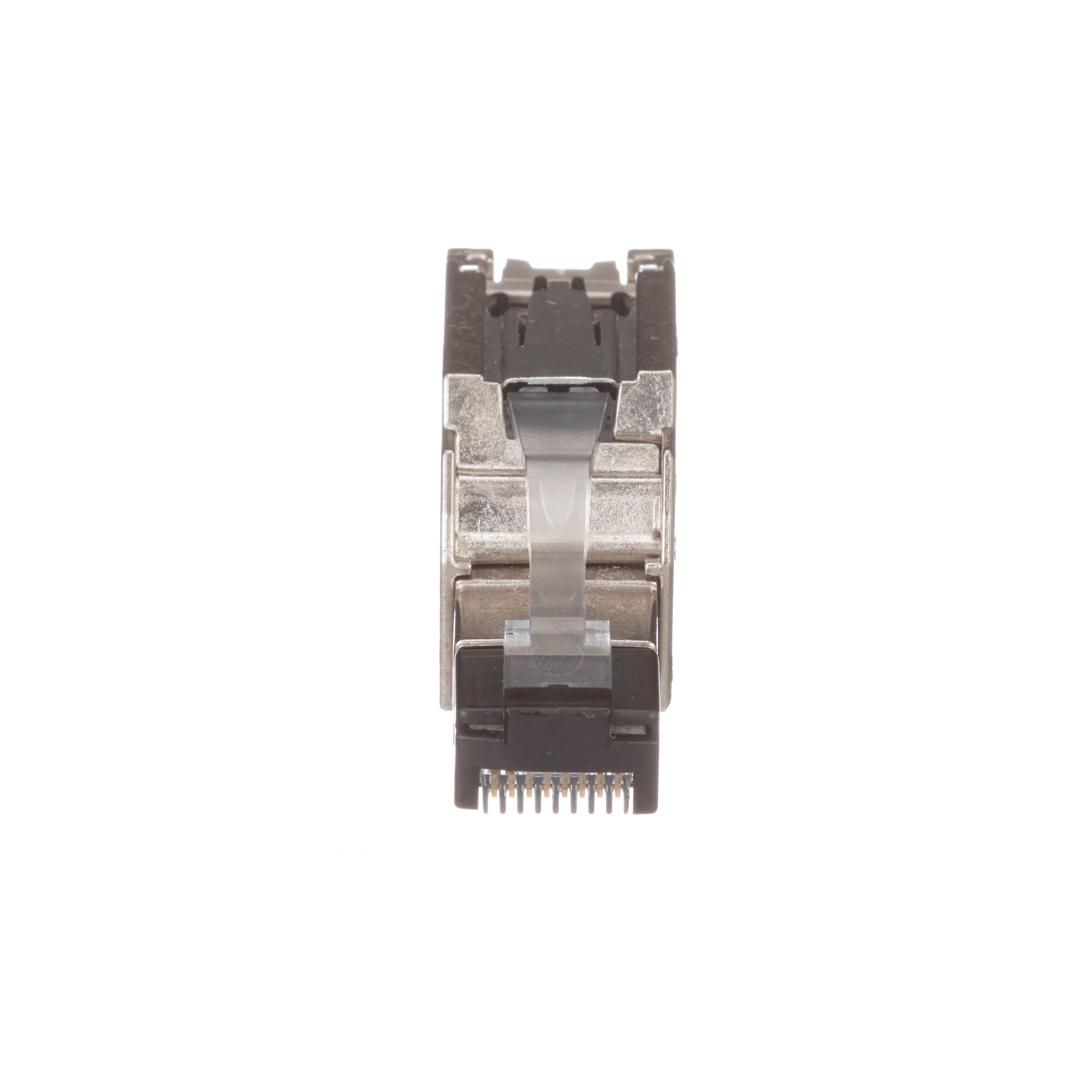

Panduit FPS6X88MTG Shielded Field Term Plug 22-26 AWG Cat6A RJ45

Product Description

The Panduit FPS6X88MTG is a shielded field termination plug designed for 22 to 26 AWG Cat6A cables. This plug allows for easy field termination of four-pair shielded twisted pair cables. The two-piece design enables straightforward installation while maintaining the performance specs required for networking applications.

• Compatible with Cat6A, Cat6, and Cat5e shielded systems
• Uses TG-style forward motion termination for optimal performance
• Supports re-termination up to twenty times

Product Highlights

The FPS6X88MTG plug is ideal for demanding networking environments. Its compact design fits into tight spaces and supports a wide range of cable types, making it a versatile choice for various installations.

Product Information

Standard Information

• Brand: Panduit
• Manufacturer Part Number: FPS6X88MTG

Technical Specifications

• Connector Type: RJ-45 Network - Male
• Product Type: Network Connector
• Conductor Size: 22 to 26 AWG
• Cable Type: Twisted Pair Cat 5e/6/6a
• Temperature Rating: -40 to 185 deg F
• Dimensions: 0.54 inches W x 0.71 inches H
• Packaged Quantity: 1
• Application: For use in PoE and network equipment
