Panduit FOPRZ06Y Indoor Armored Fiber Optic Cable 6F OM4

Product Description

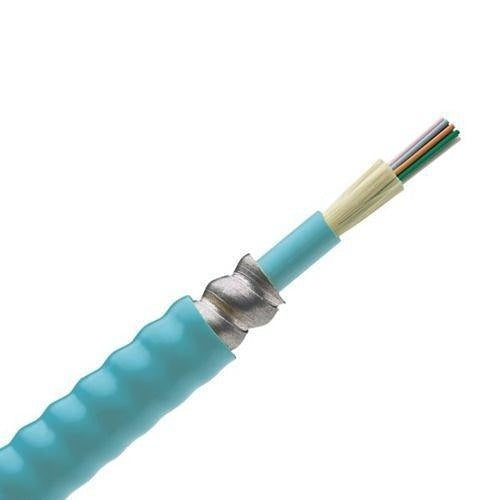

The PANDUIT FOPRZ06Y is a 6-fiber indoor armored fiber optic cable constructed for 50-micron OM4 multimode applications. Armored construction provides mechanical protection against crush, rodent damage, and physical stress in demanding indoor environments. OM4 multimode fiber supports high-bandwidth transmission for data center, enterprise LAN, and campus backbone runs. Licensed network technicians, low-voltage contractors, and structured cabling installers are the typical trades handling this cable. The armored jacket makes it suitable for runs through areas where standard non-armored cable would be at risk.

This cable is suited for indoor backbone and horizontal cabling installations where physical protection is required without the need for conduit throughout the entire run. Common applications include data centers, server rooms, telecommunications rooms, and industrial facilities where cable trays or exposed routing create risk of mechanical damage. The 6-fiber count supports structured cabling designs that require moderate fiber density per run.

Key Features

• 50-micron OM4 multimode fiber for high-bandwidth indoor applications
• 6-fiber count supports moderate-density backbone and horizontal runs
• Armored construction resists crush, impact, and physical stress
• Indoor-rated design for data center, enterprise, and industrial environments
• Sold individually (each) as a single unit

Compatibility

Designed as an OEM-style structured cabling component compatible with standard 50-micron OM4 multimode fiber optic systems and LC, SC, or MPO termination hardware rated for OM4 multimode fiber.

Installation Notes

Installation should be performed by a licensed low-voltage or structured cabling contractor familiar with ANSI/TIA-568 standards. De-energize any adjacent active equipment before routing cable through trays, conduit, or wall penetrations. Observe minimum bend radius specifications for armored fiber to avoid fiber stress or breakage. Proper fiber termination tools and fusion splicing or mechanical splicing equipment should be used at termination points.
