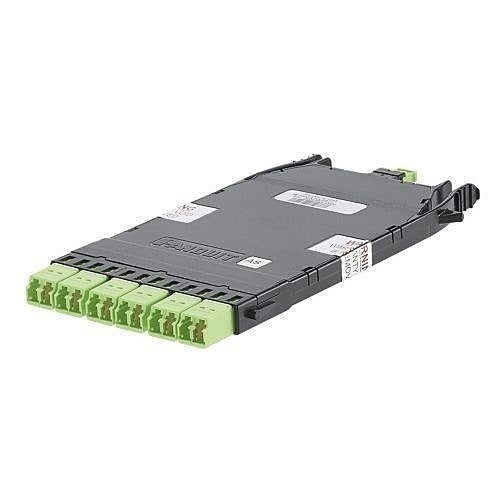

Panduit FHCWA-12-10AS Hd Flex Cassette OM5 Fiber Module

Product Description

The PANDUIT FHCWA-12-10AS is an HD Flex cassette module designed for OM5 wideband multimode fiber optic infrastructure. It provides a pre-terminated, plug-and-play interface between a single MPO trunk connector and six LC duplex ports, delivering 12 fiber channels in a compact cassette form factor. This module is installed in HD Flex panel housings and is used to organize and manage high-density fiber connections in structured cabling systems. Licensed low-voltage technicians and data center cabling professionals are the primary installers for this type of hardware.

This cassette is suited for high-density data center, enterprise LAN, and campus backbone installations where OM5 short-wavelength division multiplexing (SWDM) or standard multimode applications are deployed. The 1 MPO to 6 LC duplex configuration allows technicians to fan out a single 12-fiber MPO trunk cable into individual LC duplex connections at the equipment layer. It is intended for use within PANDUIT HD Flex modular panel systems as a field-replaceable, sliding cassette component.

Key Features

• OM5 wideband multimode fiber type supports SWDM4 and standard multimode applications
• 1 MPO port to 6 LC duplex port fanout provides 12 fiber channels per cassette
• Pre-terminated cassette design enables fast, tool-free deployment
• Sliding cassette form factor is compatible with HD Flex panel housings for modular, reconfigurable layouts
• Each unit sold individually (sold as EA, quantity 1)

Compatibility

Designed as an OEM-style replacement and standard-fit cassette for PANDUIT HD Flex modular fiber panel systems supporting OM5 multimode fiber infrastructure.

Installation Notes

Installation should be performed by a qualified low-voltage cabling technician familiar with structured fiber optic cabling practices. De-energize connected active equipment and follow ESD precautions before handling fiber cassettes or connectors. Clean all MPO and LC ferrules with an appropriate fiber optic cleaning tool before mating connectors. Reference TIA-568 and applicable local low-voltage cabling codes for fiber installation guidelines.
