Panduit FCM3.25-A-T14 latching flat cable mount 3.25 in (200 pack)

Product Description

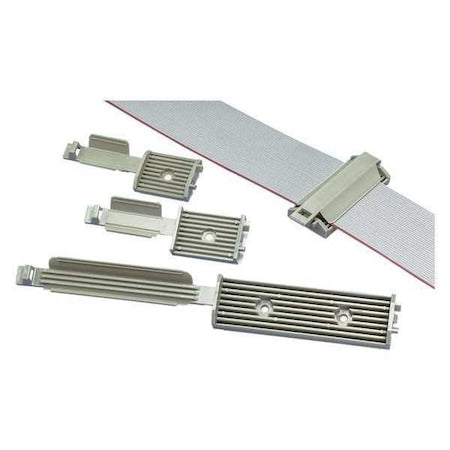

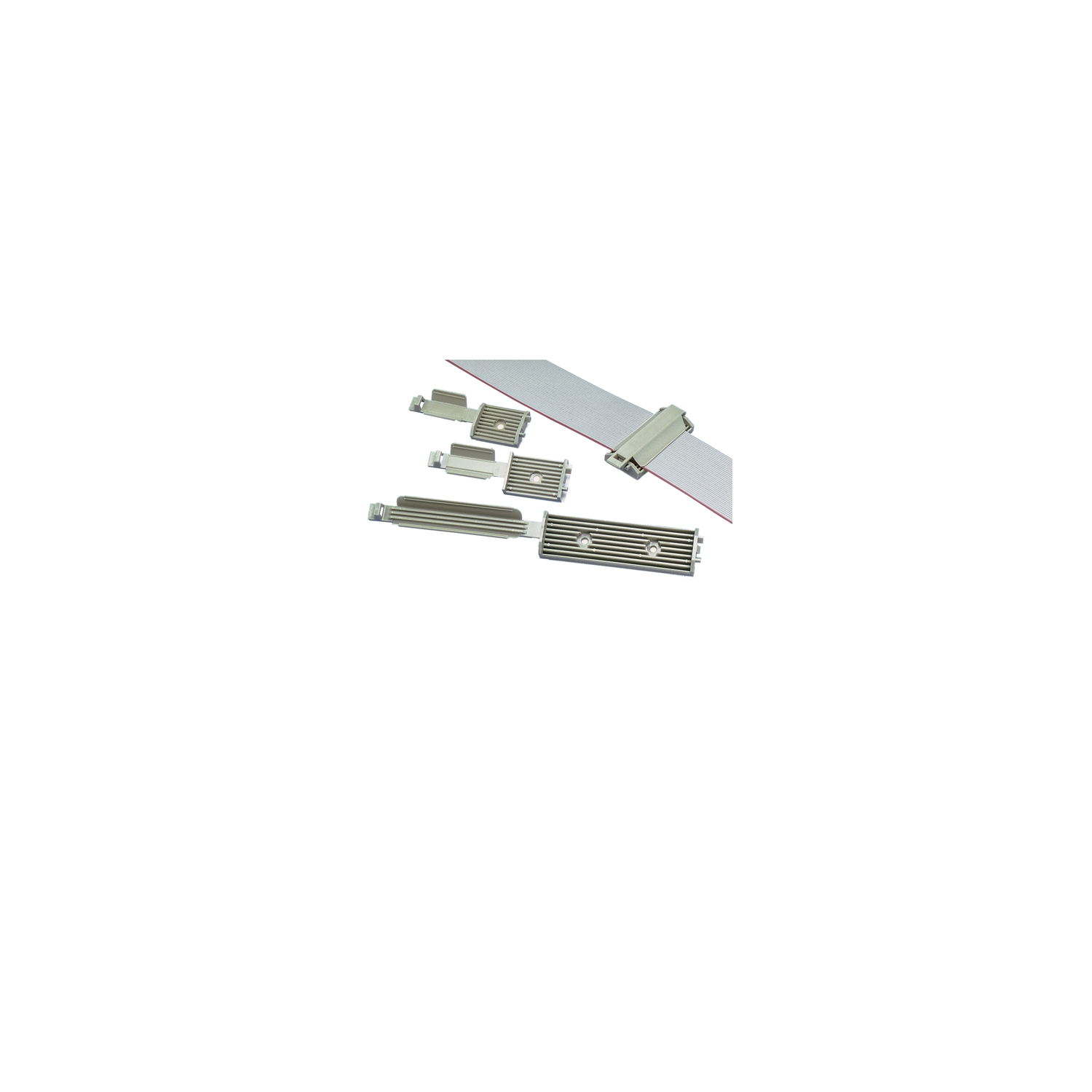

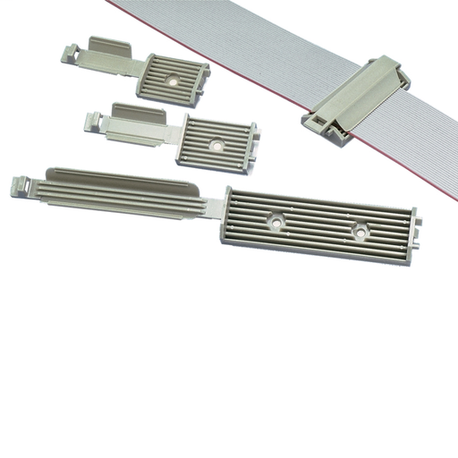

Panduit FCM3.25-A-T14 is a latching flat cable mount designed to secure flat cables, wires, and tubing with a rubber adhesive backing. The PVC clip accepts flat cable up to 3.25 in (82.6 mm) wide with a maximum stacking height of 0.17 in (4.3 mm). Intended for indoor cable routing and protection, the mounts feature a large base for high-bonding strength and are supplied in packs of 200.

• Rubber adhesive mounting with large base for high bonding strength
• Accepts flat cable up to 3.25 in (82.6 mm) wide; maximum stacking height 0.17 in (4.3 mm)
• Low-profile PVC latching design for indoor wire routing and cable protection

Product Highlights

Latching adhesive-backed flat cable mount; holds flat cable up to 3.25 in; pack of 200; UL recognized and RoHS compliant

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: FCM3.25-A-T14
• Country of Origin: United States

Technical Specifications

• Brand: Panduit
• Manufacturer Part Number: FCM3.25-A-T14
• Material: PVC
• Mounting Method: Rubber adhesive
• Clip Width: 3.25 in (82.6 mm)
• Maximum Stacking Height: 0.17 in (4.3 mm)
• Overall Length: 3.38 in (85.8 mm)
• Package Quantity: 200
• Intended Use: Indoor
• UL Recognition: E136577
• RoHS Compliance: Yes
• Static Load Capacity: 1.5 lb (0.68 kg)
• UNSPSC Code: 24102001
• Country of Origin: United States
